December 6, 2006: Manny and iron worker acrobatics

Sparky got to the worksite just in time to watch the separation and lowering of one of the final spans

The worksite - note the left box girder (to be removed) and the gap on the right where a box girder used to live.


another view of the worksite showing Manny's crane and the to-be-removed section between the concrete pier and the temporary supports


The right rail - recently removed


Our team of iron worker acrobats: Carlos, Stan, Robbie?e and Nugget


and their elevator


Up up and away


In the middle - preparing to wrap the box beam with cables


Getting into position


Carlos signaling Manny


Into position


Making a hole for wrapping the cables


Manny moving the cables into position


Waiting


Cables in position for attaching around the box girder


Stan (far left) and Robbie preparing one end for attaching


more getting ready


Dropping one end through the hole and wrapping the box girder


Preparing the other cable


Carlos signaling Manny - take up the slack


While someone starts cutting the near end of the box girder


and Manny stabilizes the girder


Robbie starting to burn through the far end with Stan sort of chillin'


and continuing to cut through the near end


while Lewis is cutting the left box girder into smaller sections


A closer view of Carlos cutting the near end


Robbie cutting at the far end


Completed cut


and Robbie continuing to cut through the other end


while Carlos enjoys the view

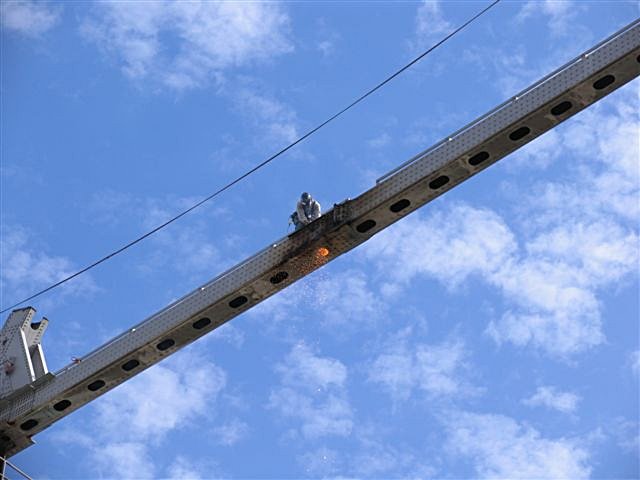

Robbie cutting through the hand rail


and continuing to cut through the box girder


Separation and lift-off


Manny slowly lifts the segment


Wow - what a view - clouds, Manny in action and the separated girder

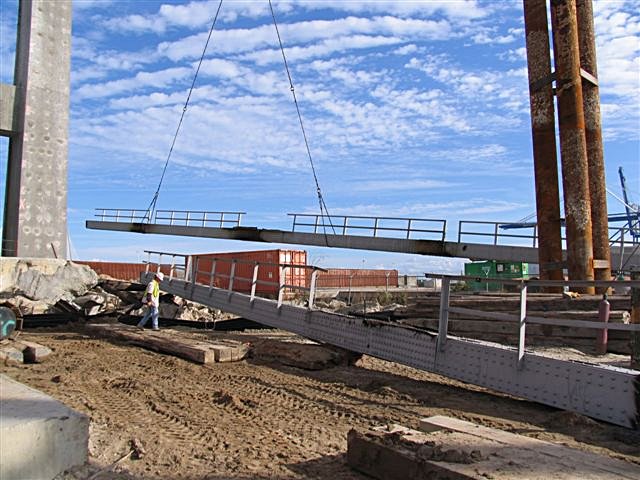

Then lowering it


down


down


down

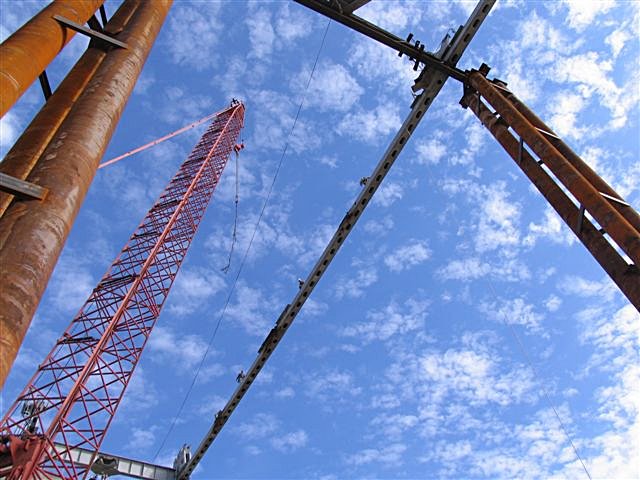

Looking up the support (Sparky is great with picking interesting perspectives


Paul Achorn and Carlos in the elevator - with the drilled pier behind them


Nugget displaying his skill at divide and conquor


Cutting the middle rail


and Nugget cutting the top rail


Manny's cap


Manny and Chris Vocci - what a pair


Sunset
