May 23, 2006:
Oscar and his team preparing for the blast tomorrow

I'm trying to catch up but Sparky can take great photos before I can download and prepare the text. We've been in Cozumel for the past week (that is my excuse for no updates) - with no email. Here are a collection of photos that show Demolition Dynamics preparing for the Pearman blast. What you will see is wrapping the explosives with kevlar and fusing. And soon, there will be some text to annotate the story

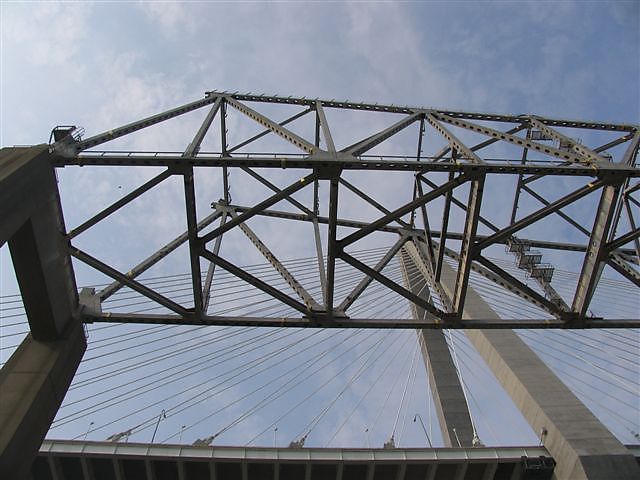

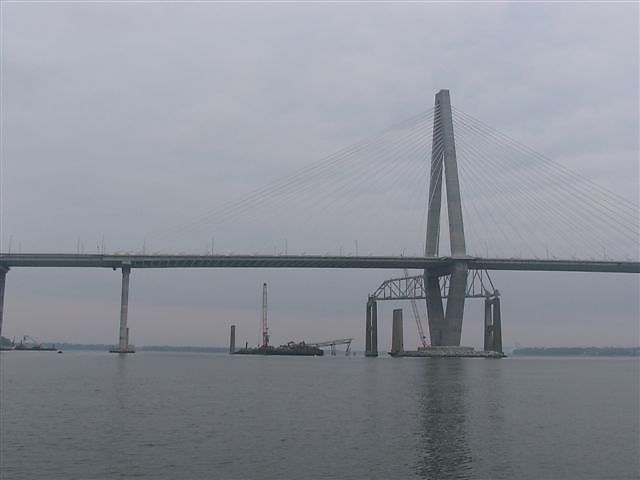

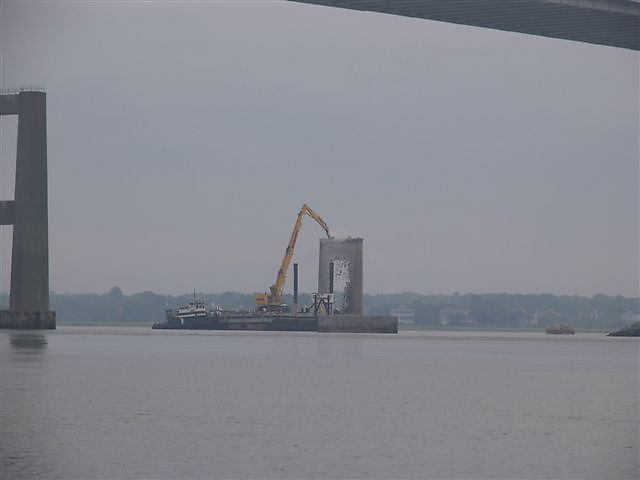

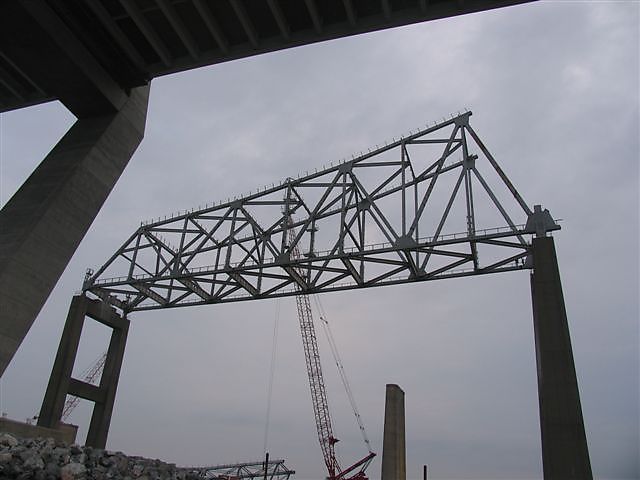

The worksite - the west section of the Pearman Bridge that projected into the ship channel (the cantilever section)

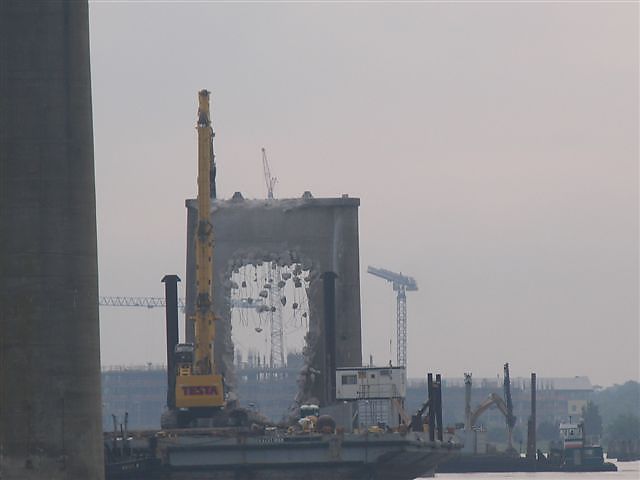

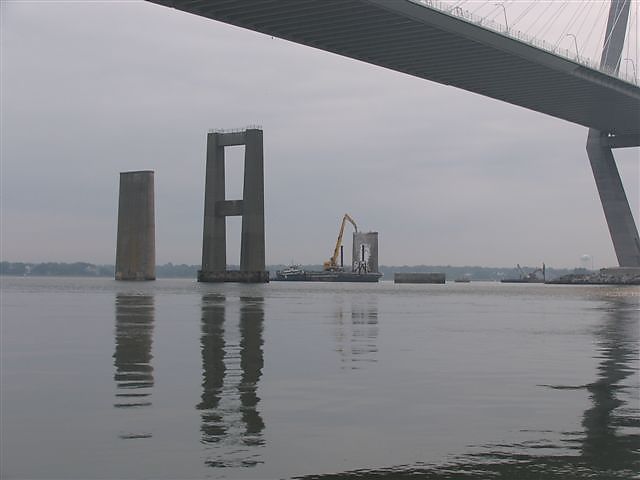

The context - the east section of the Graceless piers, C-4 I think, Michael working away at unbuilding P-10 and a bit of cousin Arthur looking on

Michael and his 1250, whacking away on the Grace pier (P-10?)

Another view of Michael - with Richie in Boston, Jackie somewhere and me in Singapore, it just is plain lonely looking at what Sparky sees but half a world away. For me meeting the unbuilders is up there high on my list of fortunate opportunities

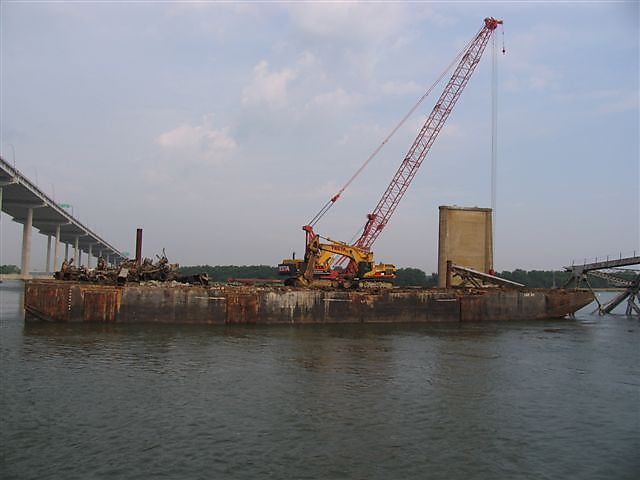

Maybe Jackie is on this barge doing a bit of Grace fishing

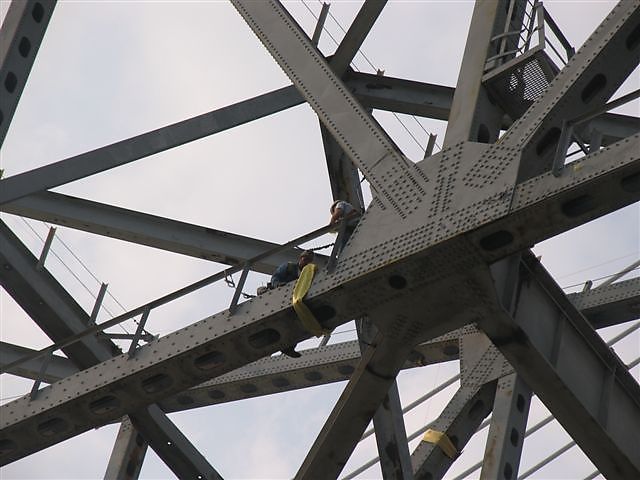

The worksite - with the crane / elevator in place and our acrobats ready to do their thing

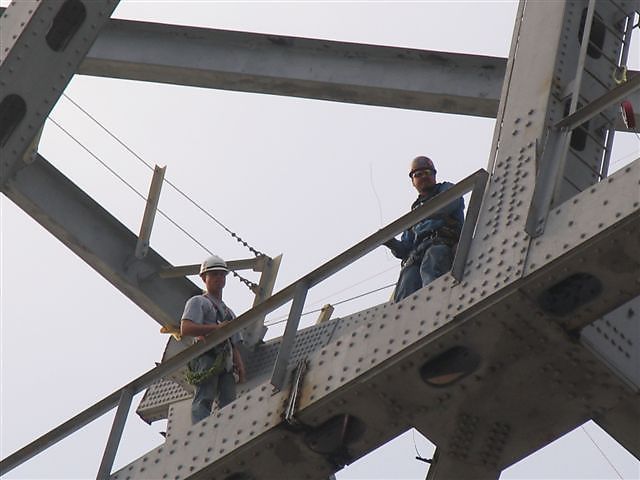

This looks like David

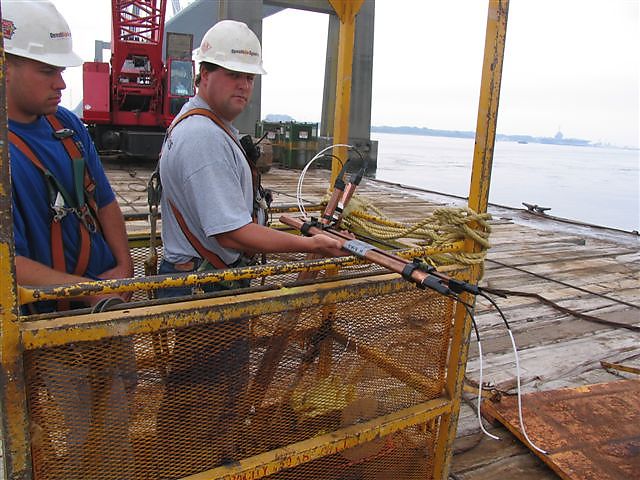

A couple of detonator assemblies

and the shaped charges

Oscar riding a floor girder after wrapping a charge with kevlar

A group of wrapped girders

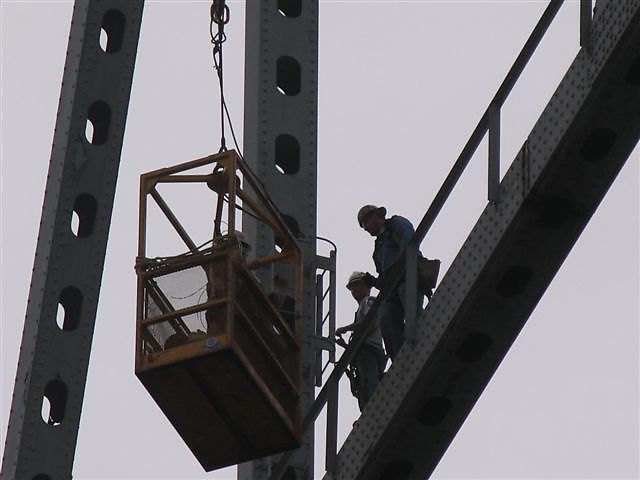

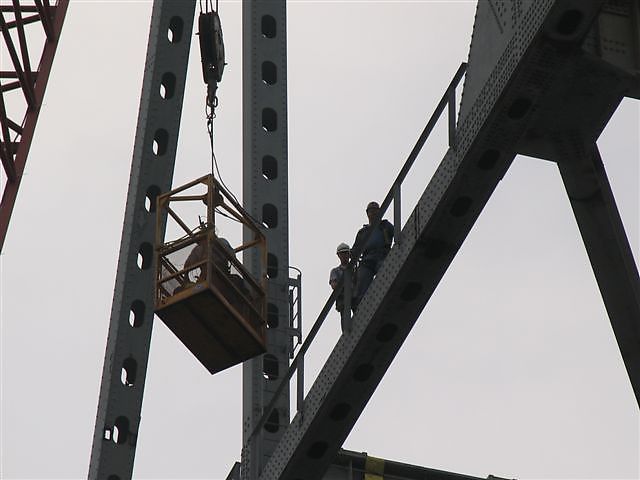

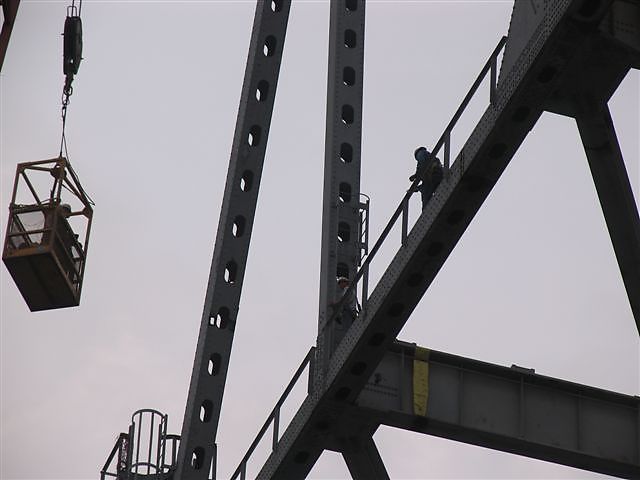

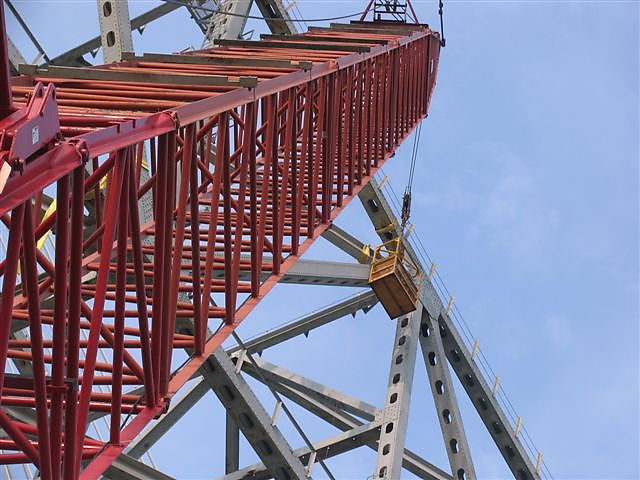

Transport of acrobats and supplies is a continuous challenge. Here is the elevator bringing something

for the acrobats

and leaving

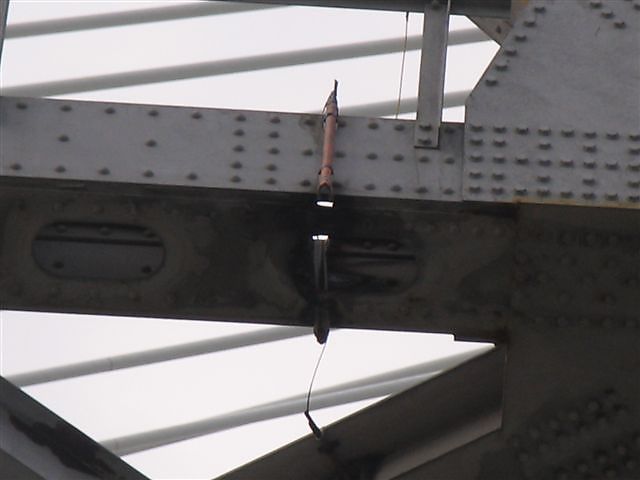

A detonator / fuse assembly prior to wrapping

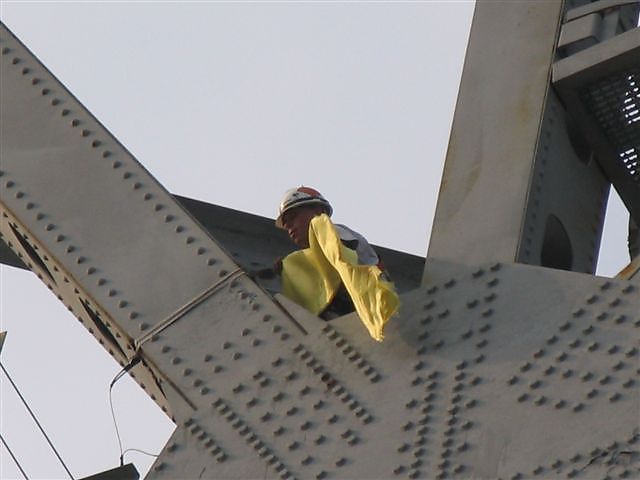

Wrapping a charge assembly - how to keep the sheet of kevlar from flapping in the breeze while wrapping it around the girder

and Sparky, the photo artist - shooting through the crane boom

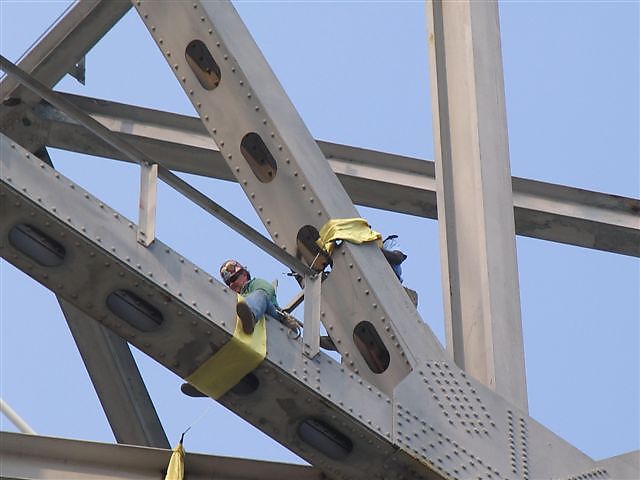

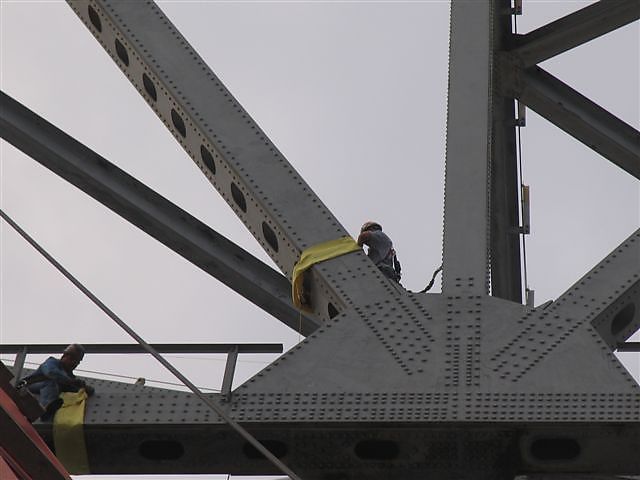

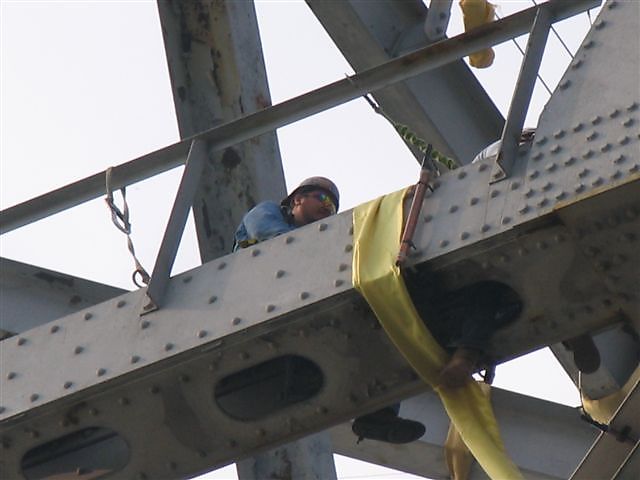

Wrapping a charge with kevlar sheets

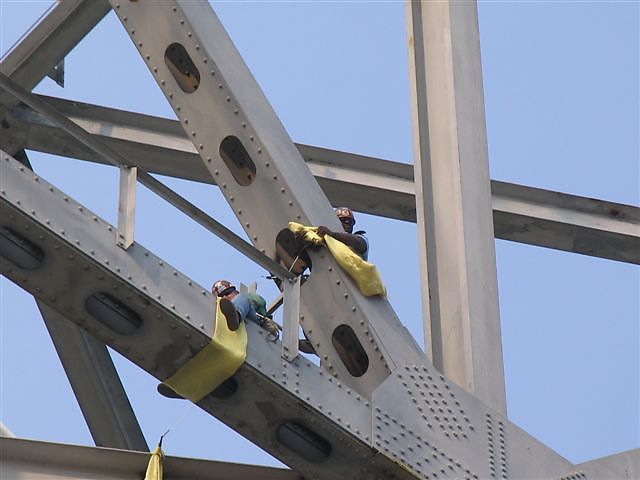

Another wrapping exercise

The shock tubes that transfer the detonation process from button to explosives

Another view of the ignition system

Here you can see the cut through the base of the girder with two of the DD acrobats chillin' a bit.

To the right is a piece of conveyor belt - a large rubber band with a steel grid inside. These are places on the Ravenel side of the charges to contain the distribution of debris. To the left is a piece of kevlar being wrapped around the girder.

Note the ignition line above the charge with splices leading to each charge.

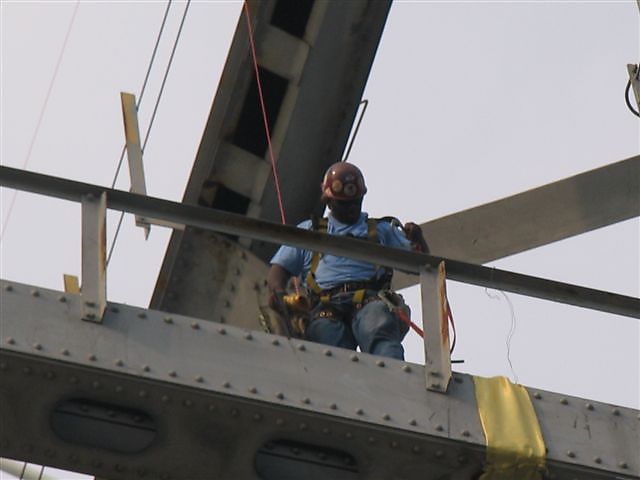

Oscar and David doing something

and Oscar doing another something

A charge and the initial wrap

The ignition system

Coupling the charge assemblies to the ignition system

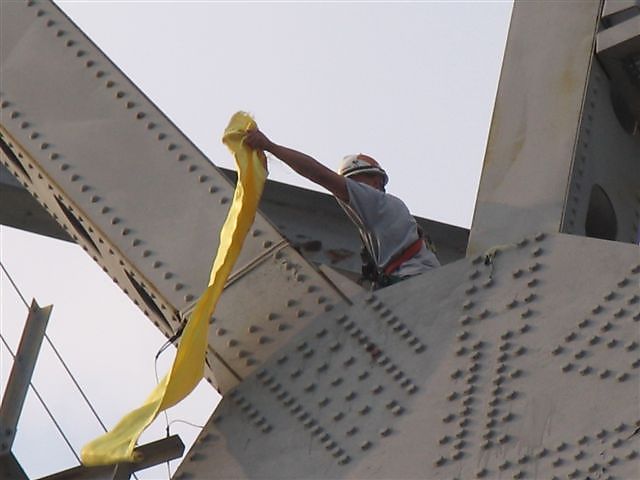

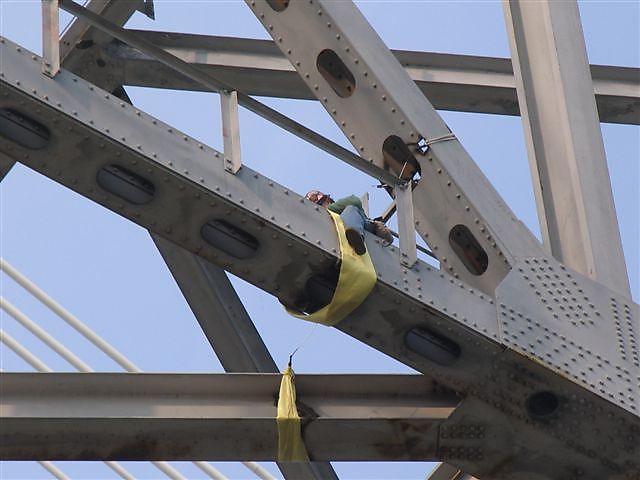

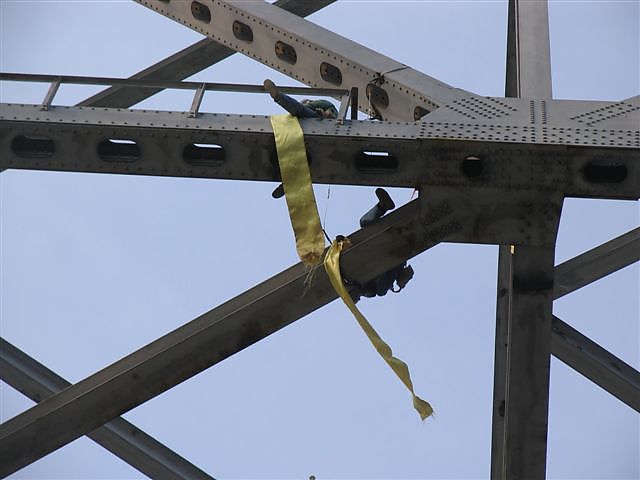

Wrapping another charge - with the usual prelude of kevlar flapping in the breeze

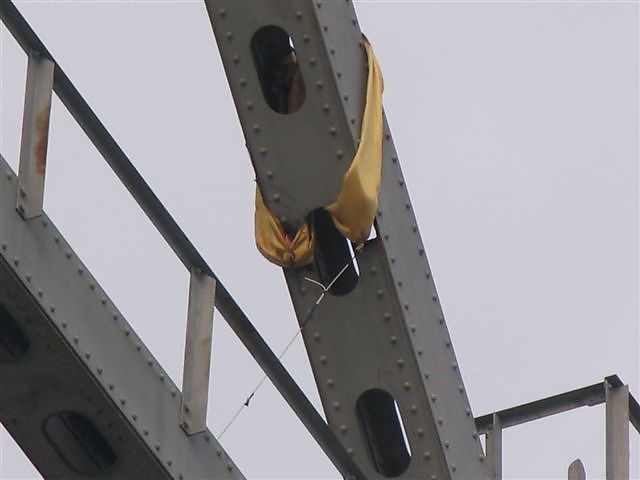

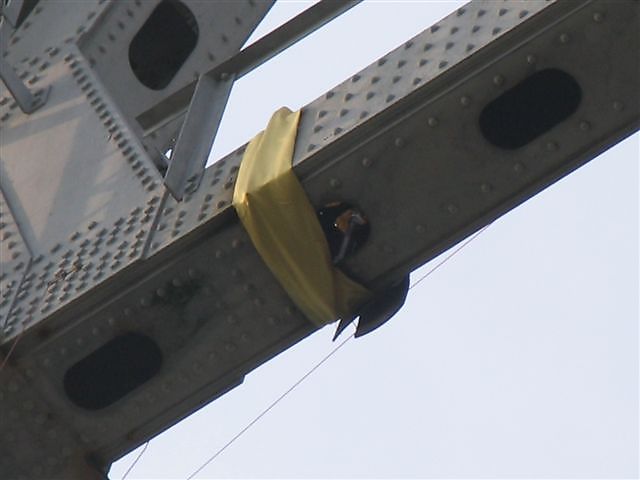

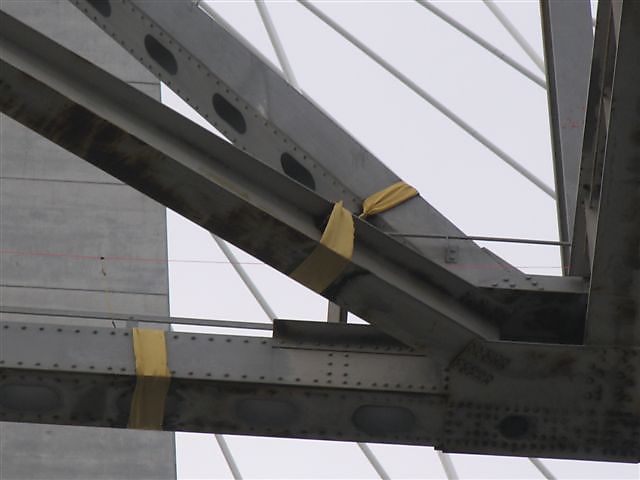

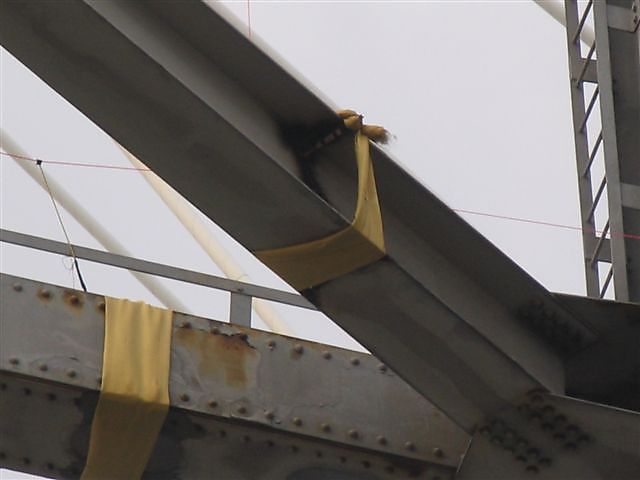

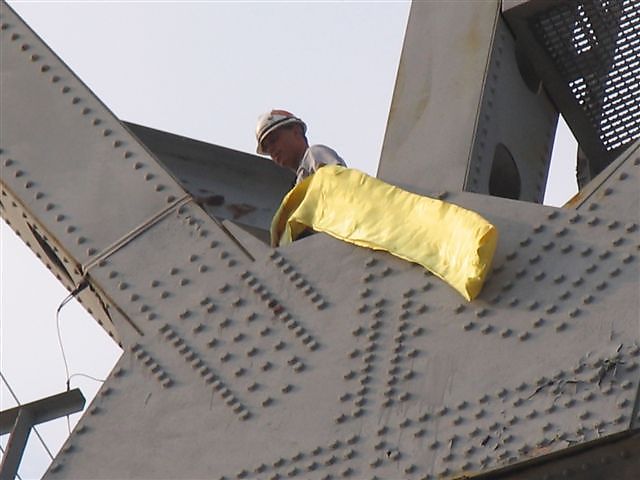

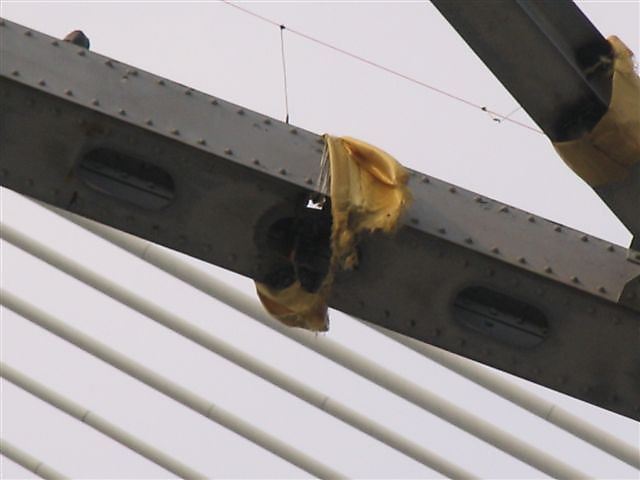

The charges placed inside the girder with a sheet of kevlar doing its thing

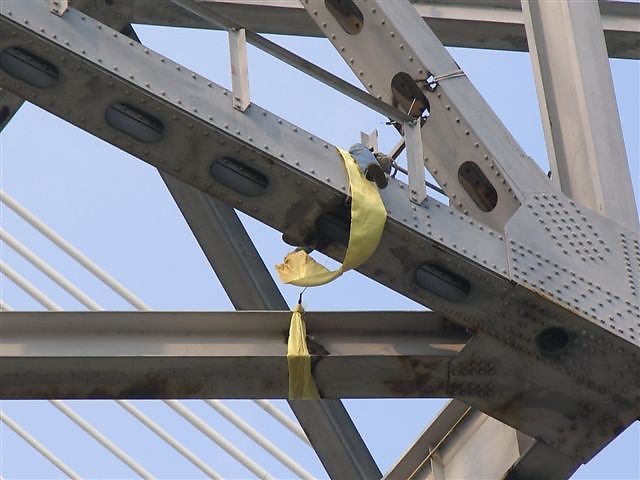

and let the wrapping begin

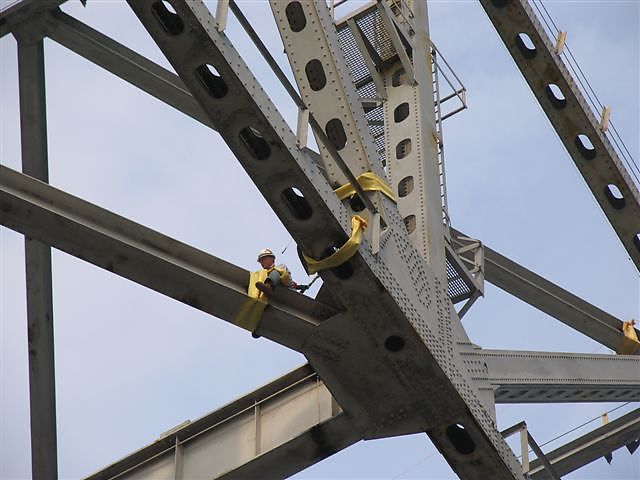

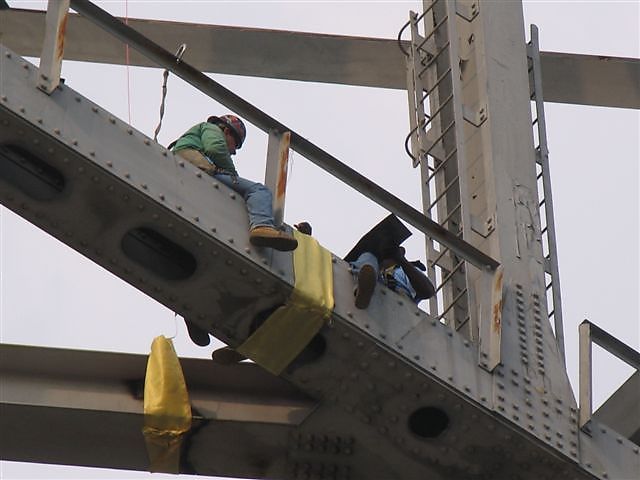

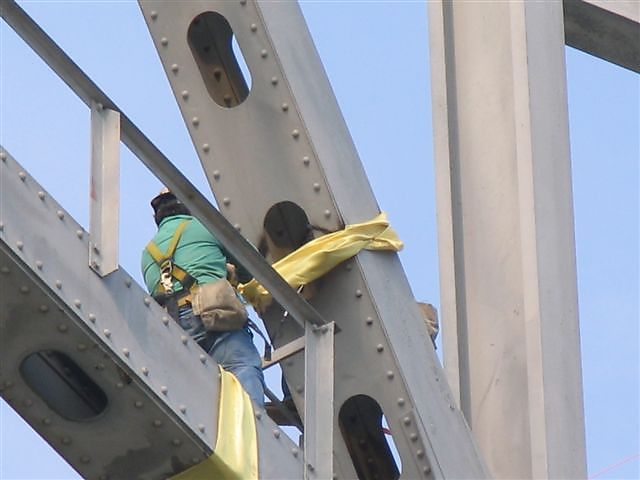

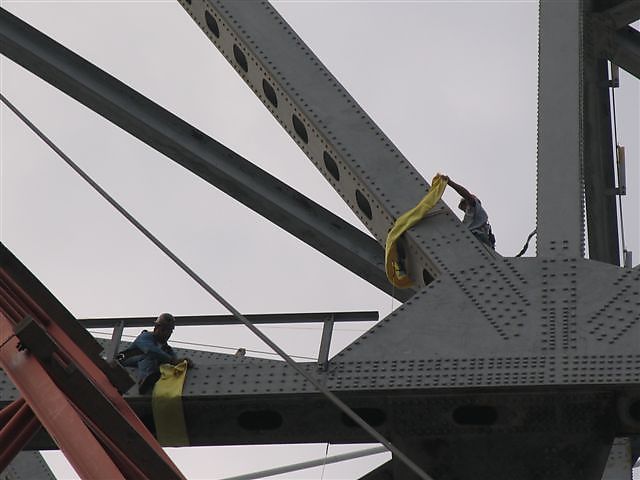

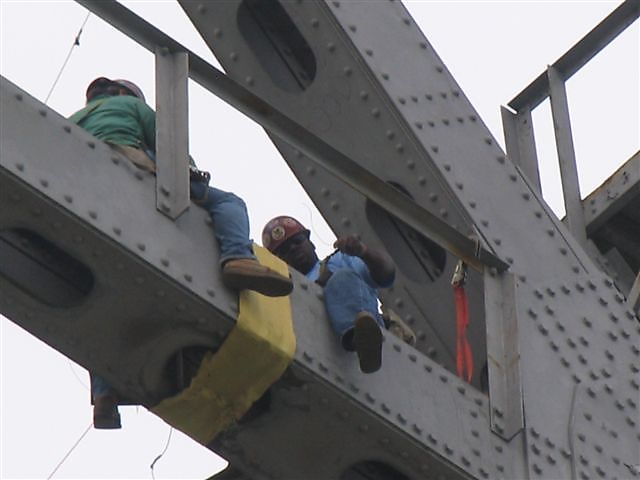

Oscar on the left - doing some wrapping while someone else is practicing another acrobatic position on the right

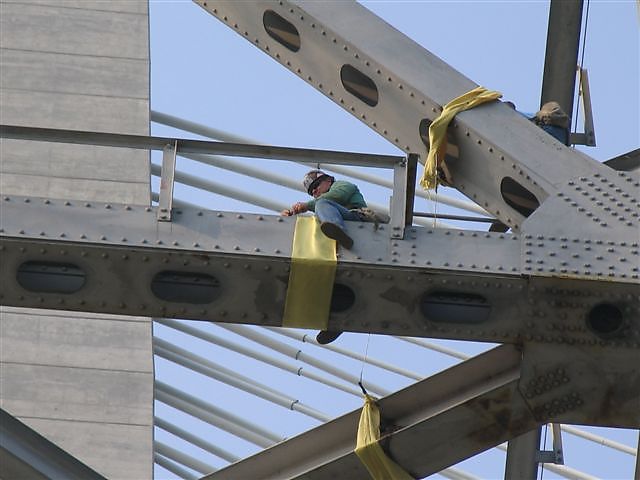

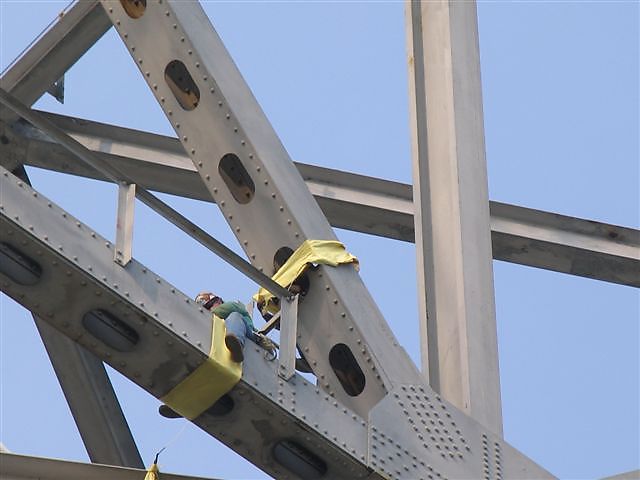

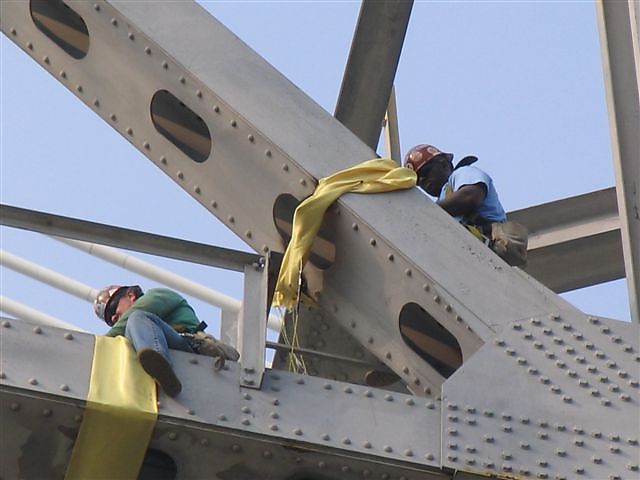

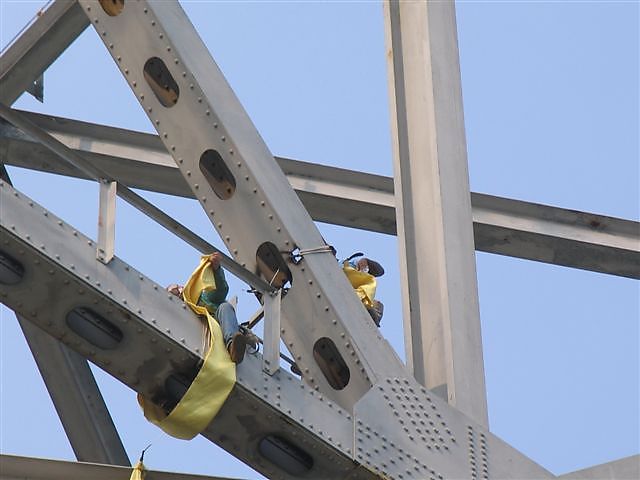

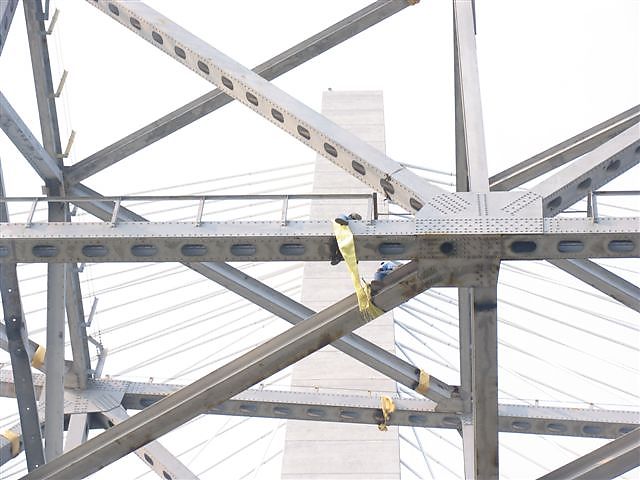

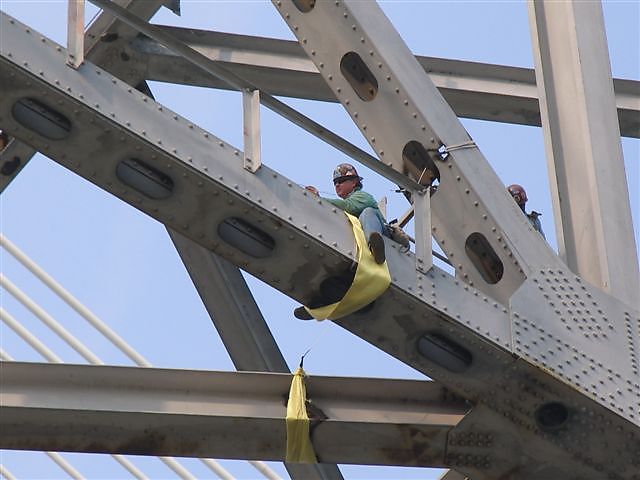

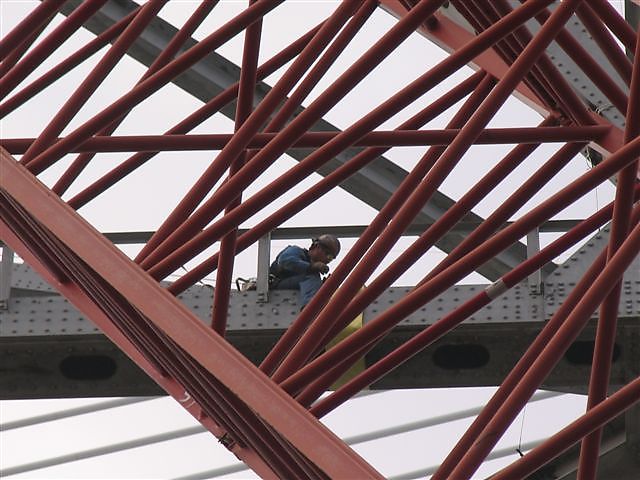

Continued wrapping with new acrobatic positions

It just gets better. Reality TV has nothing on these guys

Cousin Arthur watching the wrapping process

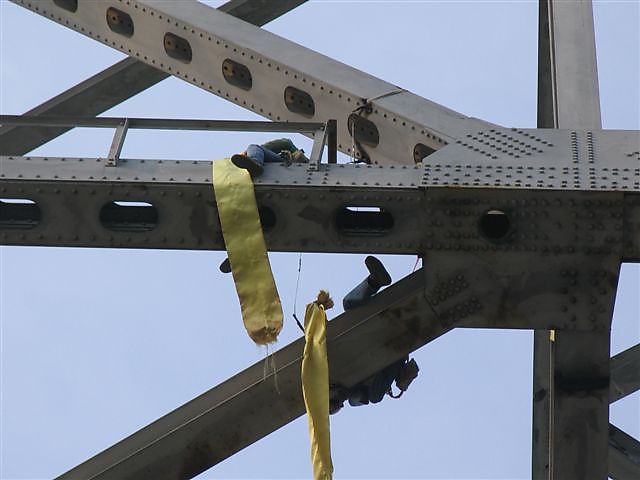

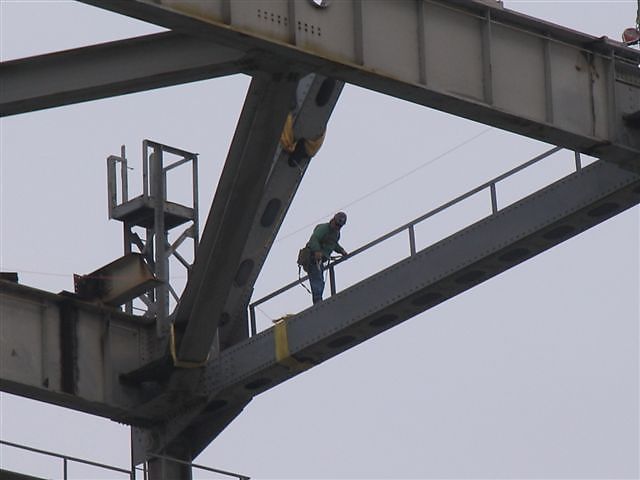

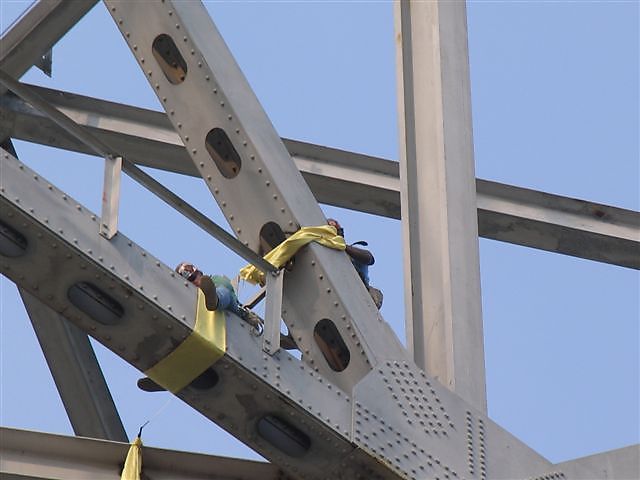

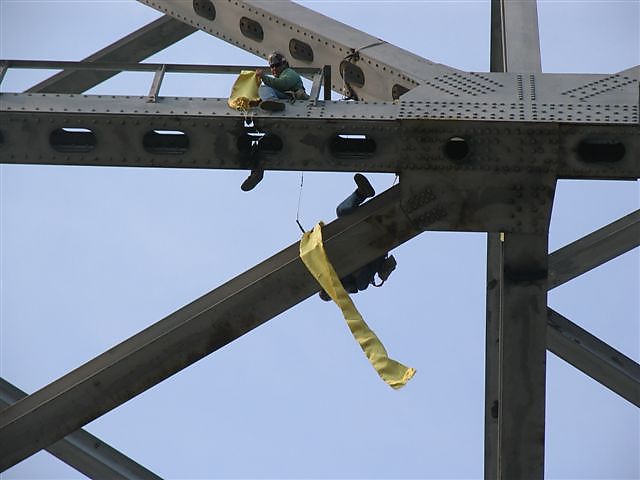

more acrobatics

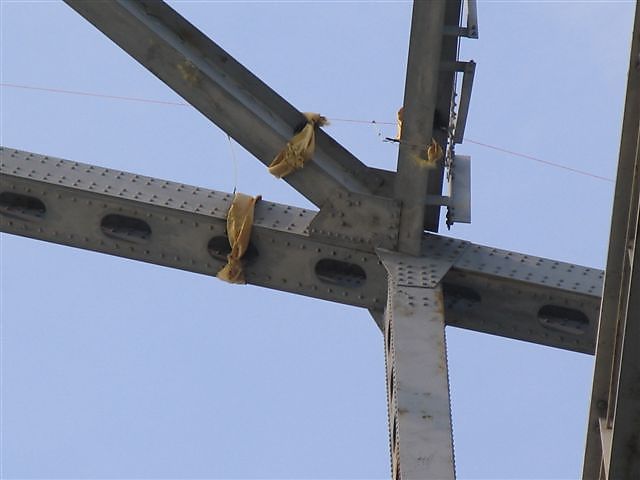

One completed, one to go

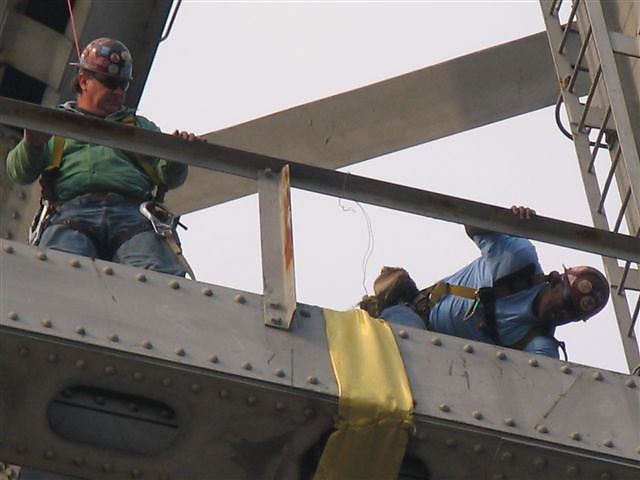

Enough is enough - time for a break

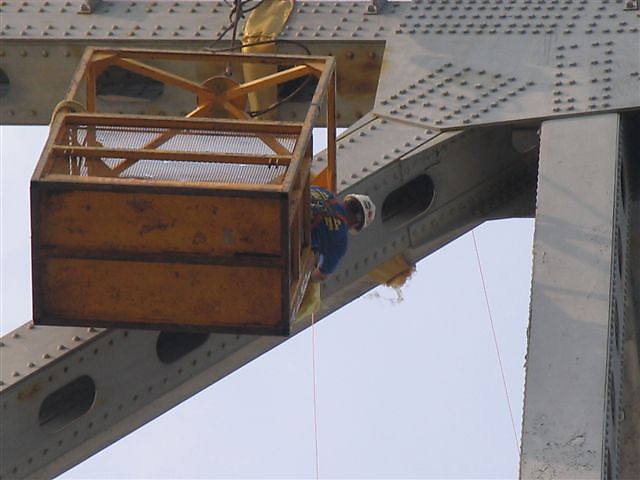

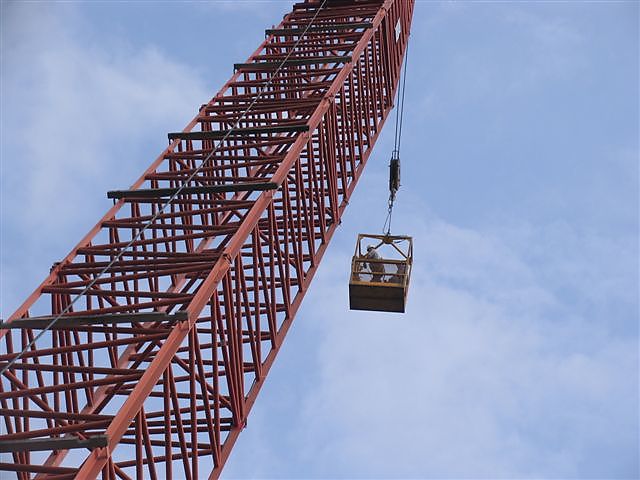

The elevator

another view

A good view of the charge in the middle, the kevlar wrapping and on the backside is the conveyor belt shield

Coupling charges to the ignition line

Lots of coupling to do

Coming down

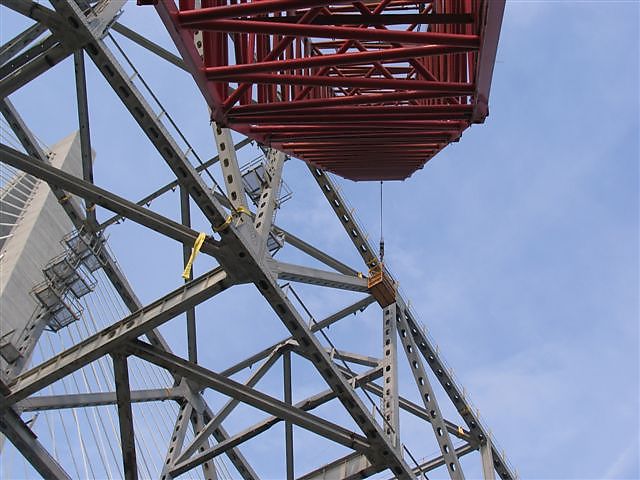

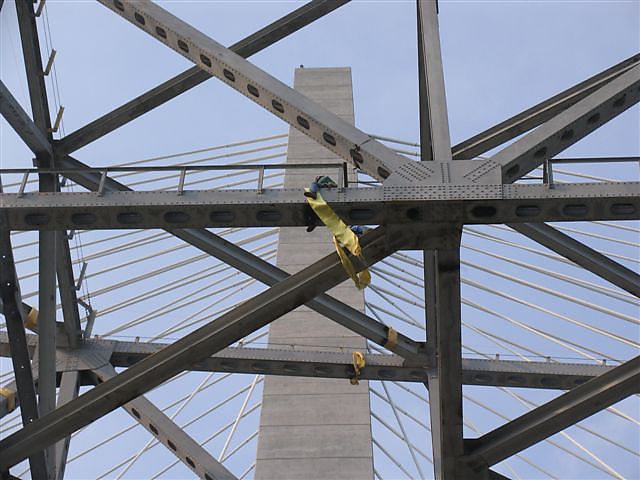

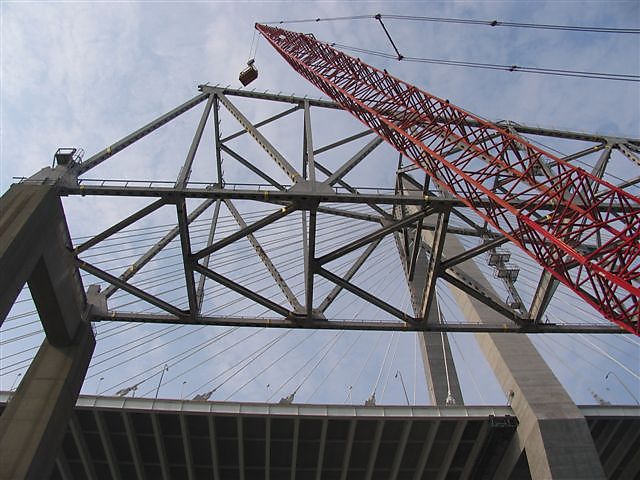

Looking up through the superstructure with Cousin Arthur in the background

A good view of the elevator

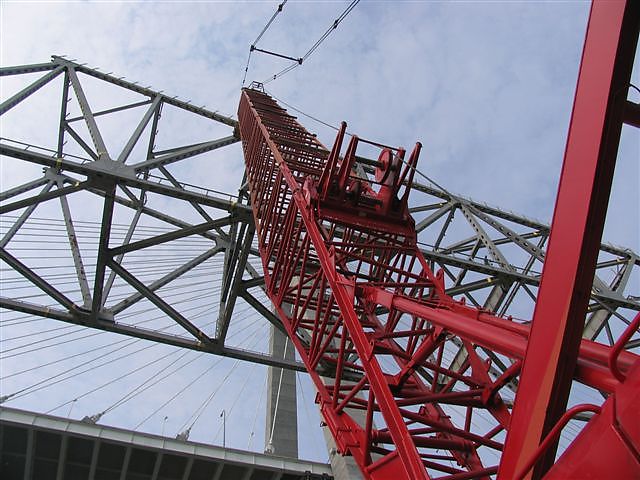

and Sparky's artistic touch
