November 30, 2005:
Imploding Pearman Pier D-25

It was a long long day - starting about 6:30 this morning - a day to watch the loading of D-25 and the implosion. After putting this together, I visited Google using dynamite sequence control - and found two really good tutorials.

Learning Links

We made several video options revealing the dynamics of today's implosion of D-25:

What was remarkable to me was how the sequencing of the detonation was controlled. Watch how Mickey's team loaded and fused the explosives. Here is the implosion sequence from still photos and from frames of the video.

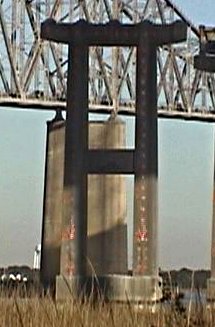

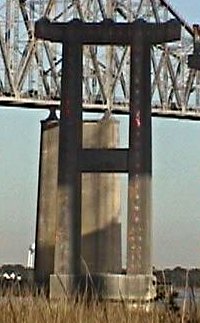

t = 15:53:08

Here you can see the detonation sequence progressing upward - t = 15:53:09

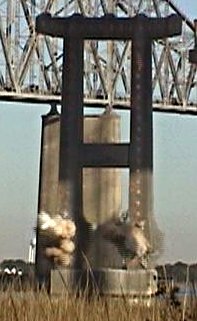

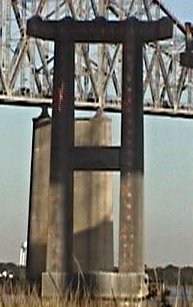

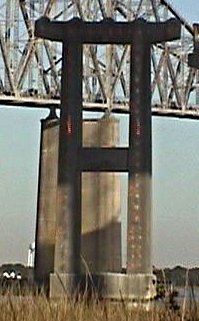

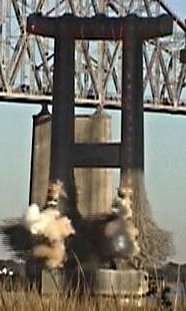

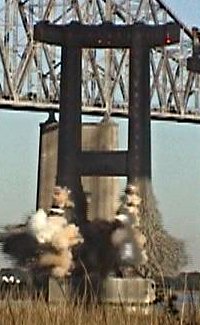

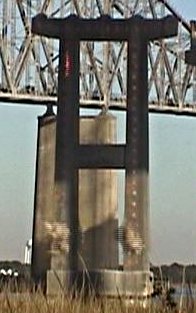

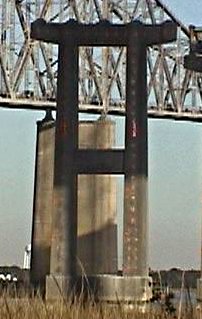

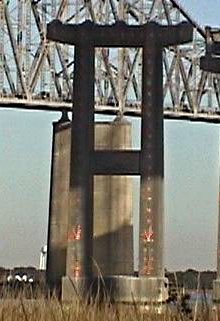

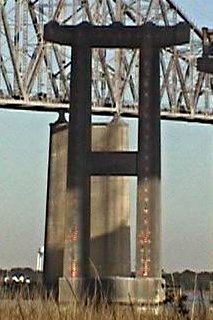

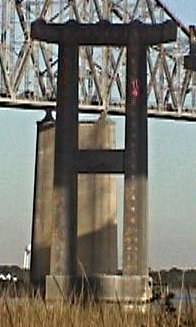

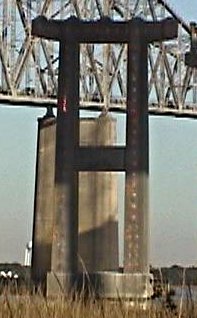

I extracted each individual fram from the video (30 frames/sec) in order to explore the individual ignitions - as shown below. Every frame is not shown - but I have indicated the time of each frame assuming 30 frames/sec. The bright (sort of) dots and lines are the individual ignition events - better seen in the shadow portion of the two columns.

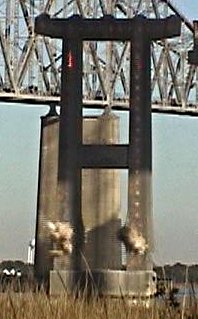

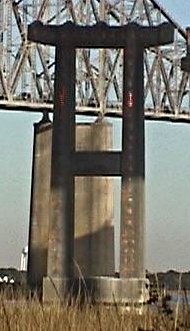

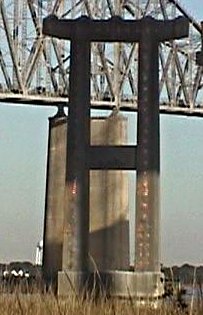

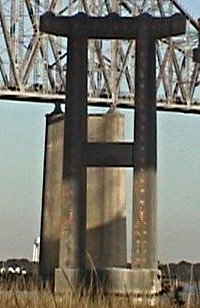

t = 0, 0.033, 0.067

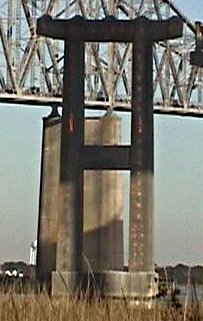

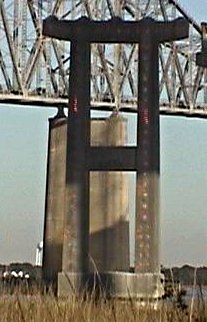

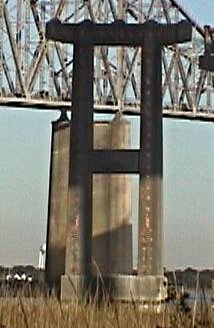

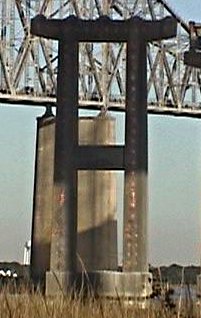

t = 0.100, 0.133, 0.233

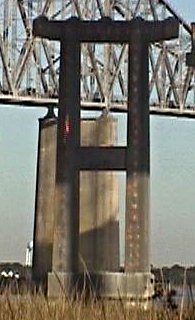

t = 0.367, 0.533, 0.600

t = 0.633, 0.700, 0.733

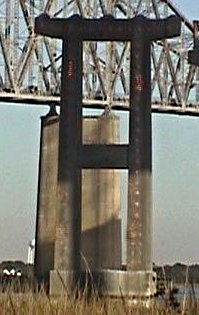

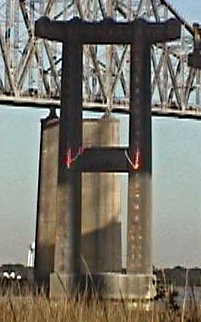

t = 0.800, 0.867, 0.900

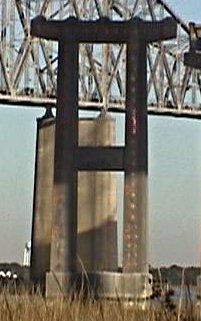

t = 0.933, 0.967, 1.000

t = 1.033, 1.067, 1.100

t = 1.133, 1.200, 1.233

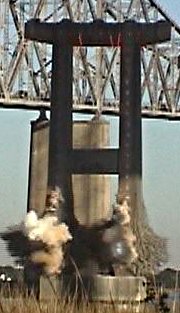

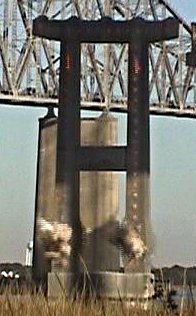

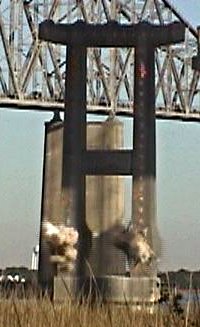

At this point, the lower 300 ms delays have kicked in and the base starts to ignite - looking like the upward directed base dynamite ignition is chasing the upward directed fuse ignition.

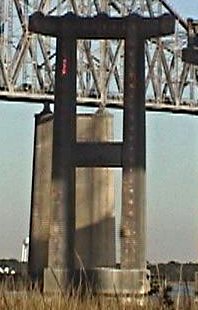

t = 1.267, 1.333, 1.367

t = 1.400, 1.433, 1.467

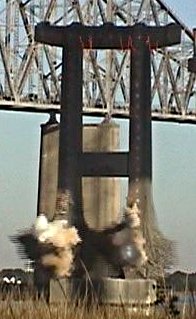

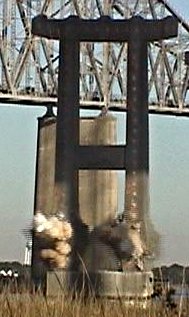

t = 1.500, 1.600, 1.633

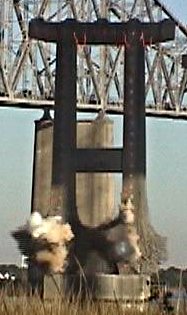

t = 1.667, 1.700. 1.733

t = 1.767, 1.800, 1.833

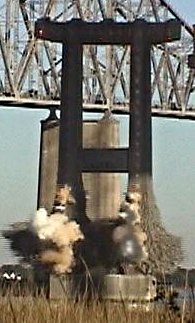

t = 1.967, 2.100, 2.633

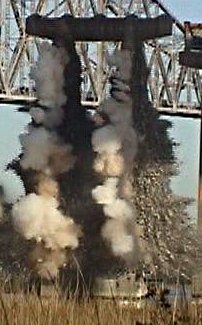

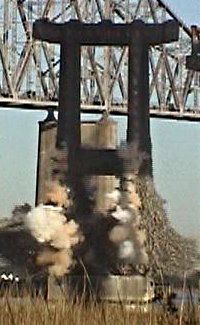

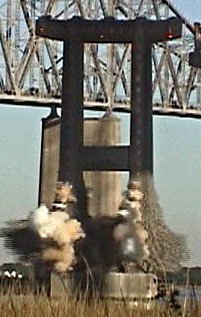

and here the cap ignites

t = 2.700, 2.733, 2.800

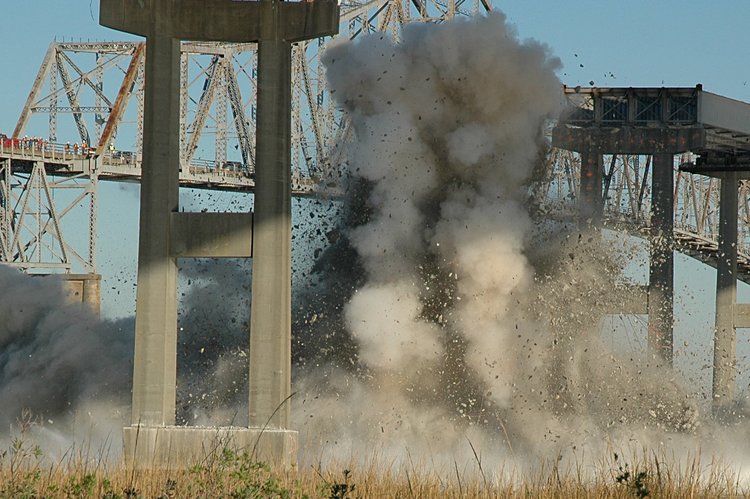

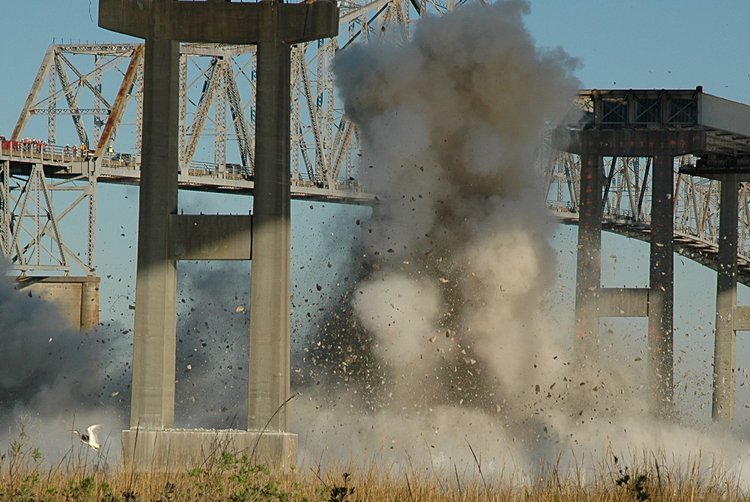

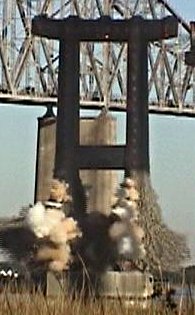

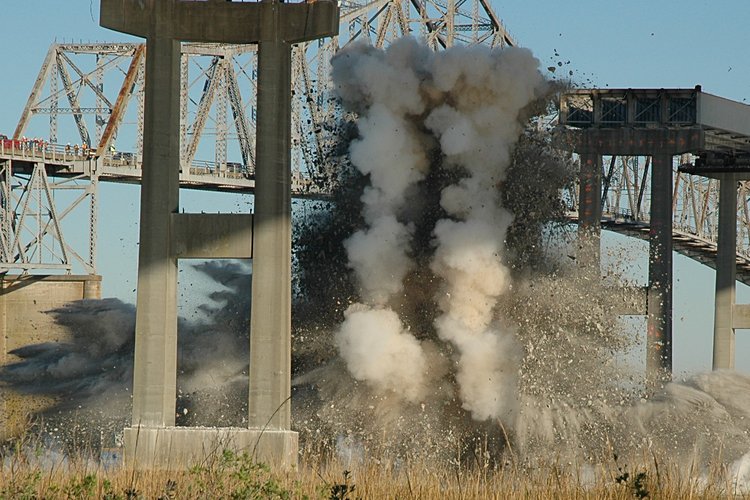

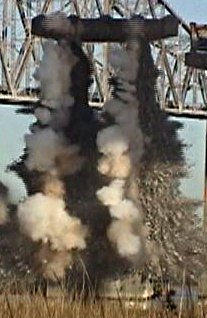

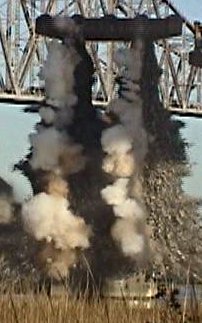

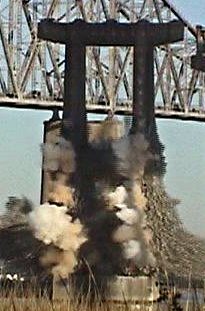

Here you note almost no vertical component of the blast - t = 15:53:09+

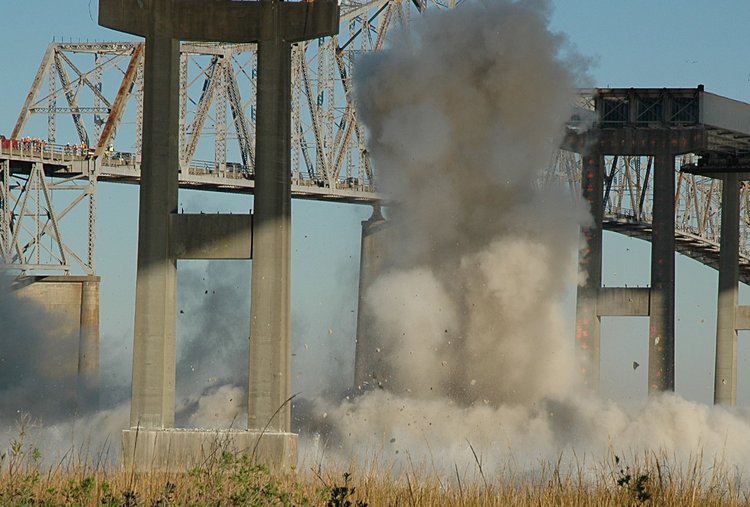

t = 15:53:10

t = 15:53:11

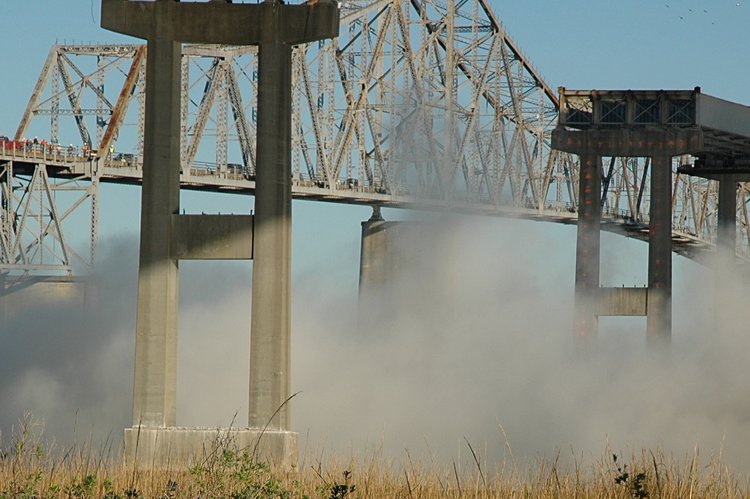

t = 15:53:12

t = 15:53:28

t = 15:57:49

With Cousin Arthur smiling his approval - all that remains is the lower support - which will be the target of a separate preparation and detonation.

And of course - transport courtesy of Sharon.

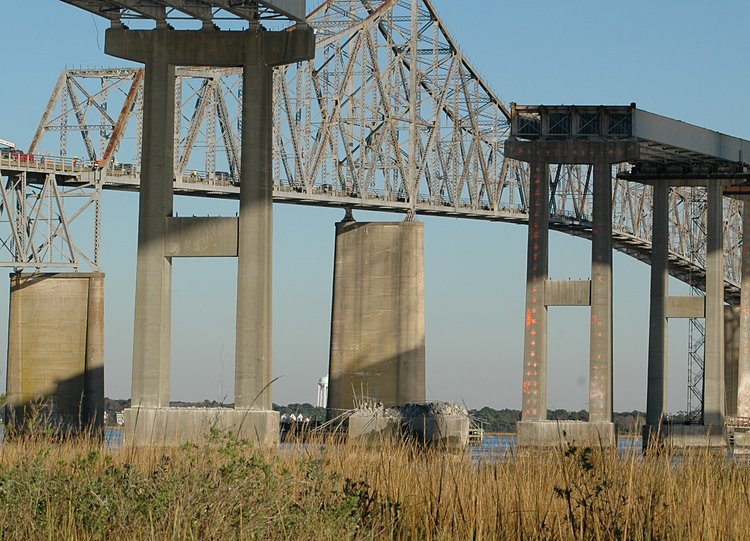

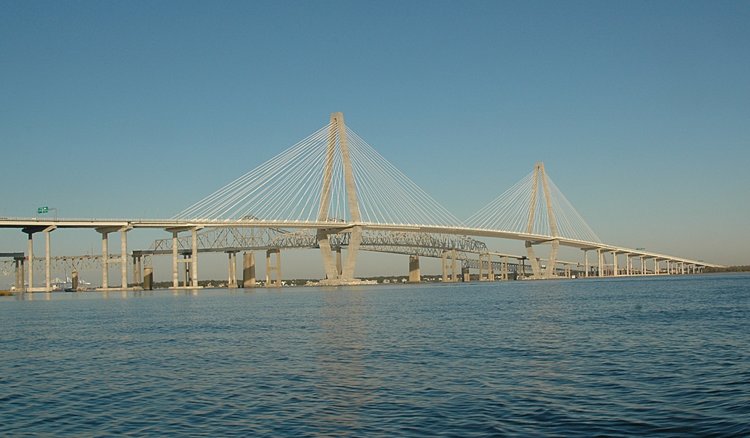

and a view of the Ravenel Bridge without D-25 in the background
