January 11, 2007: Loading T-1 for Friday's Blast

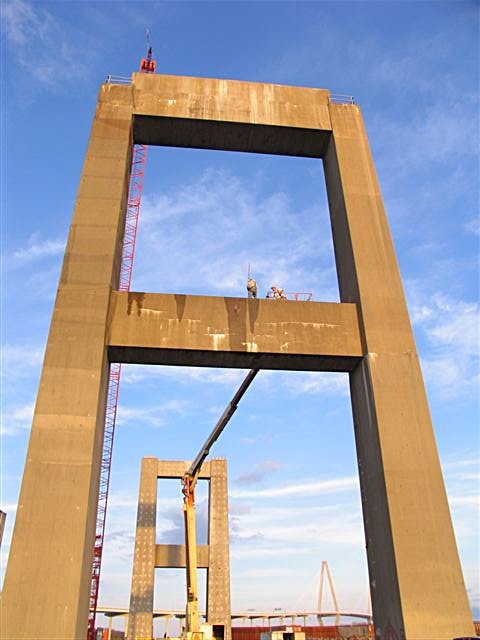

Here is T-1, the worksite with Mickey, Ken and Jackie Sherrel loading and sequencing the dynamite for Friday's implosion

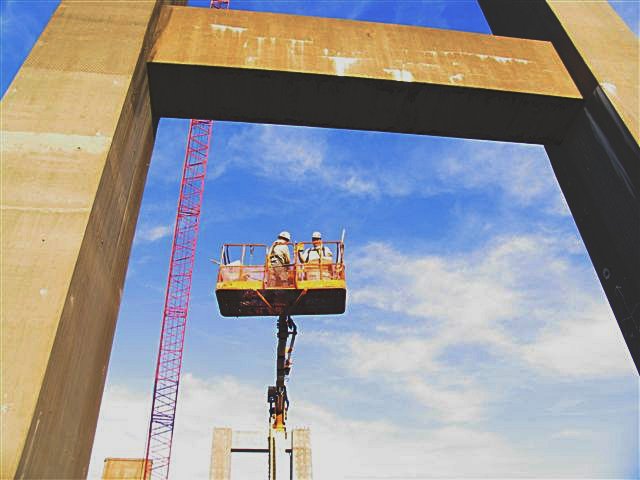

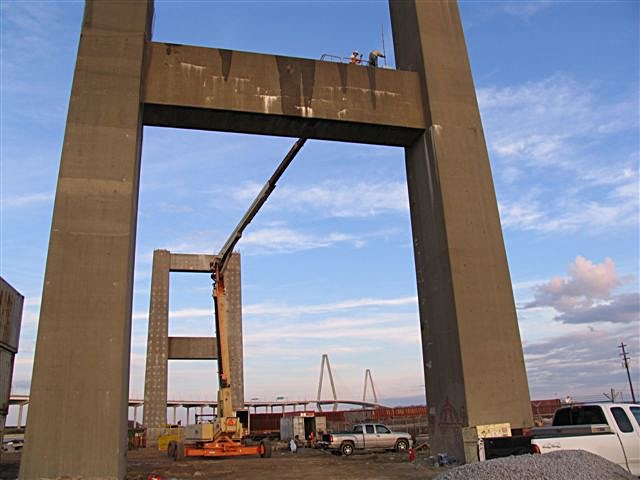

Ken and Jackie going up to load the cross-member

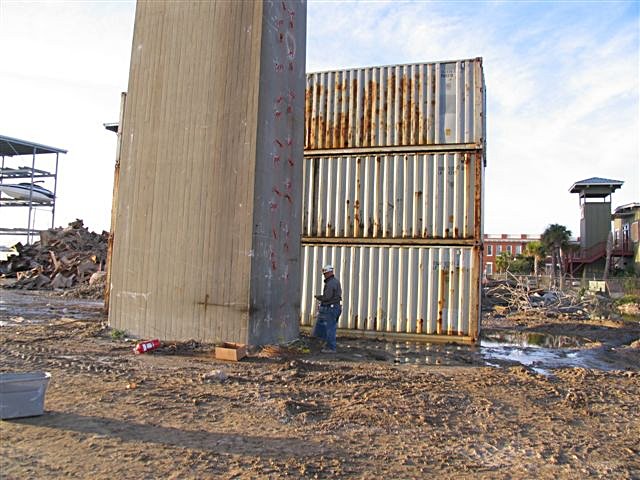

while Mickey is busy working on the tie-in at the base of T-1. Note the barrier of freight containers

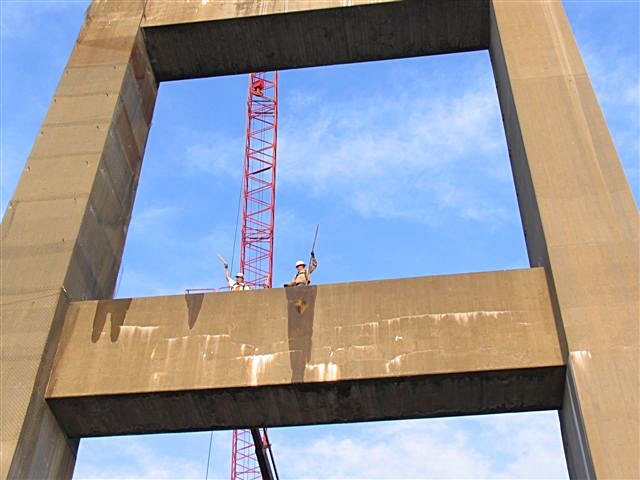

Ken on the cross member

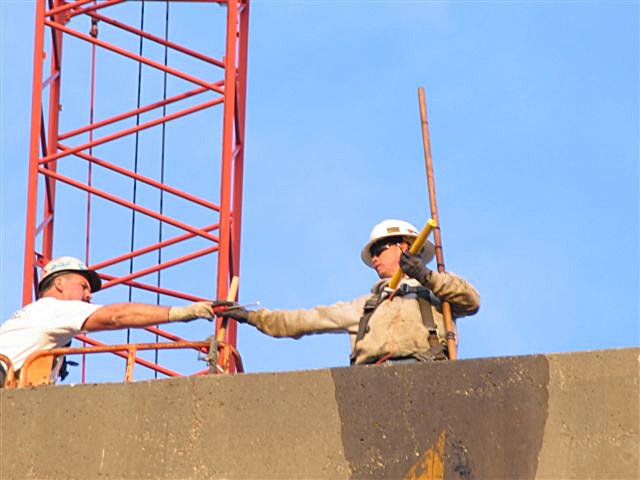

Receiving a powder punch for inserting the detonator with a tube of dynamite and tamping rod in his left hand

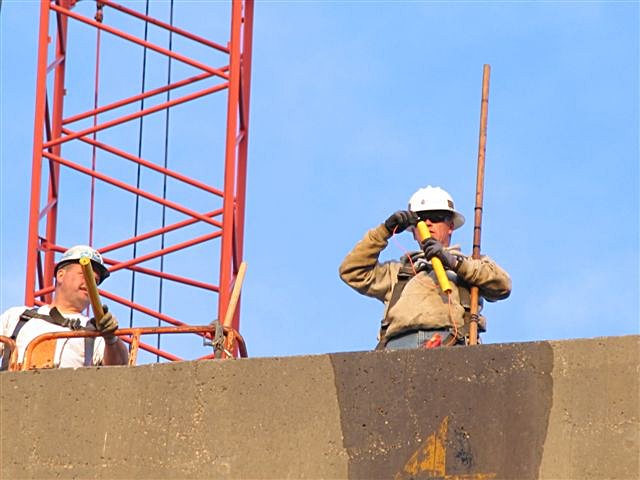

Here, inserting the detonator

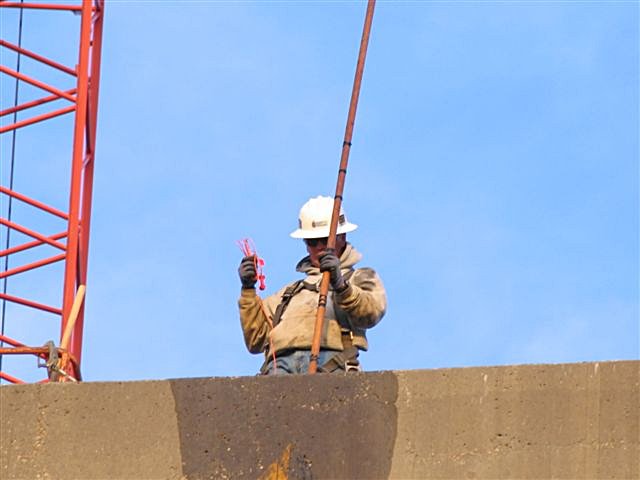

and tamping the dynamite in place - while holding the shock tube coil

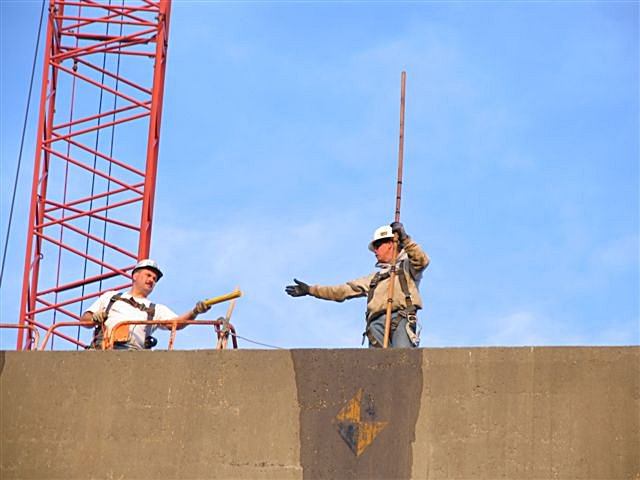

Getting the next tube of dynamite

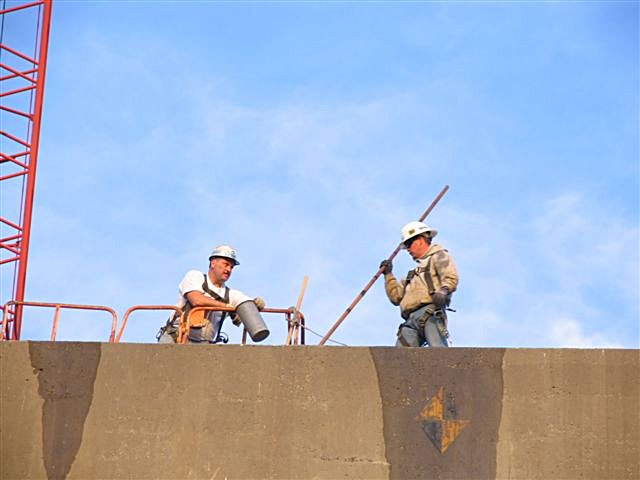

and a bucket of stemming (small crushed rock to pack the hole


A nice view of the worksite with Ken in position


And Mickey, the architect, with his container shield

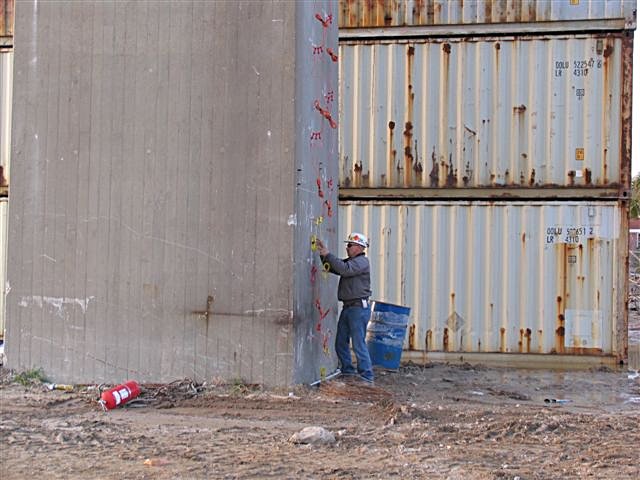

and sequencing the ignition pattern

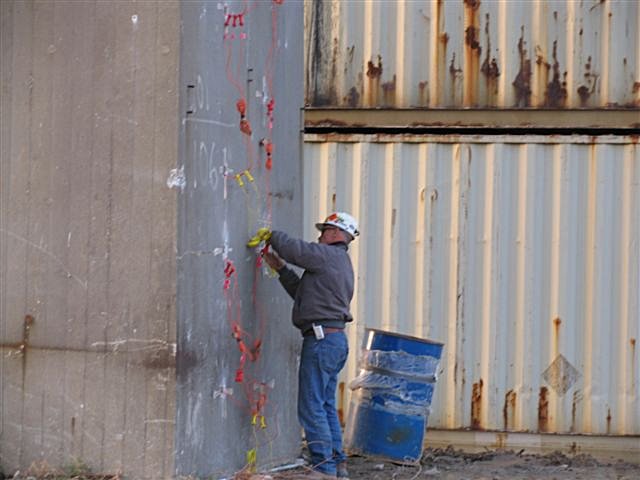

Tieing in the shock tubes.

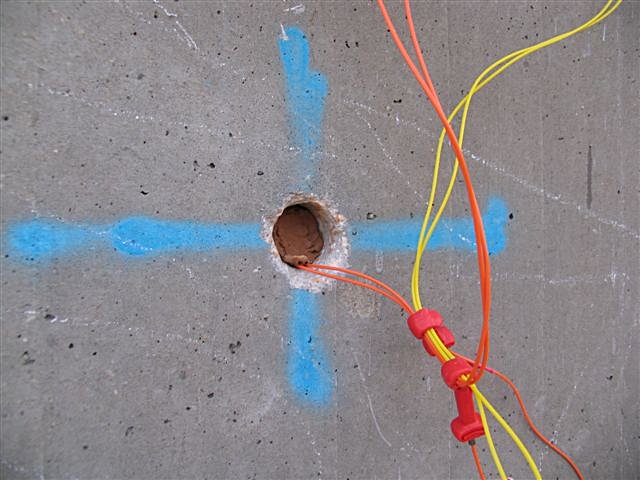

A view of the packed hole

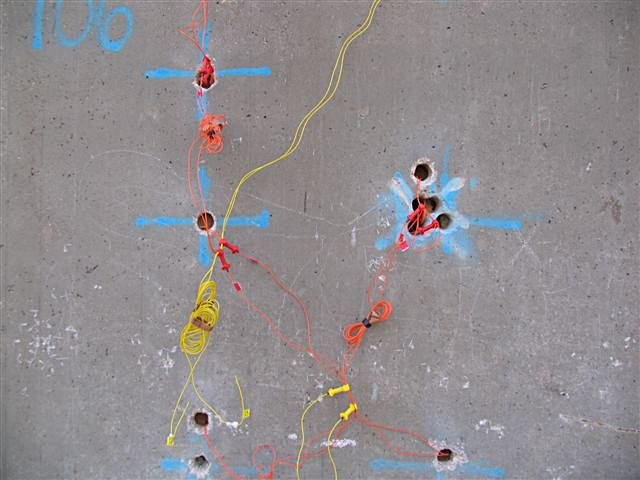

The shock tube array (close). The red lines introduce a 25 msec delay while the yellow introduces a 9 msec delay. Thus the ignition sequence travels rapidly vertically (via the yellow shock tubes) before the lower detonators are triggered. The result, one of Mickey and Ken's perfect vertical drop implosions.

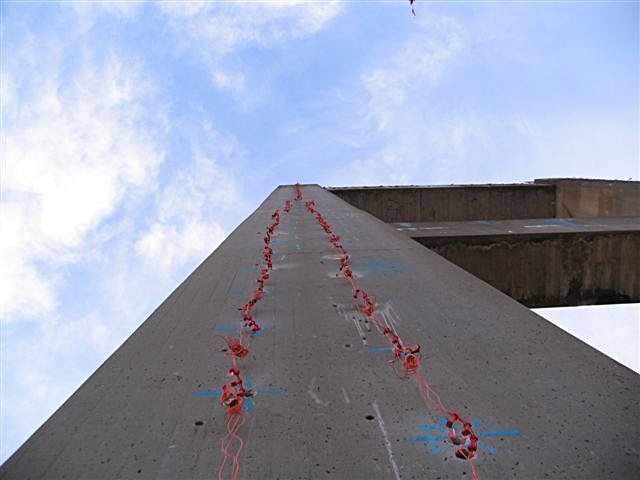

A good view of the shock tube array climbing the column

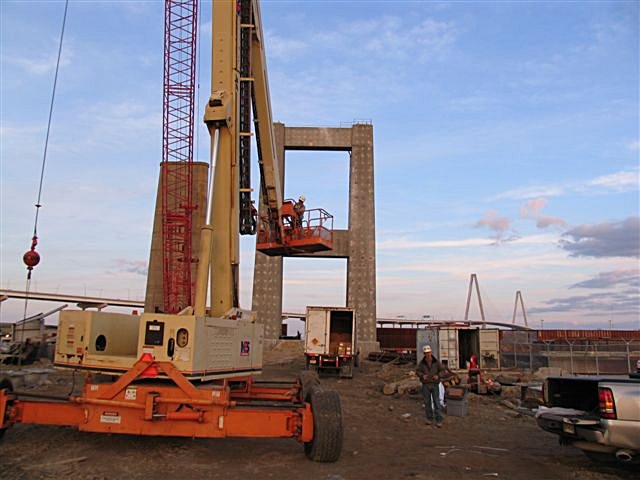

Day's end

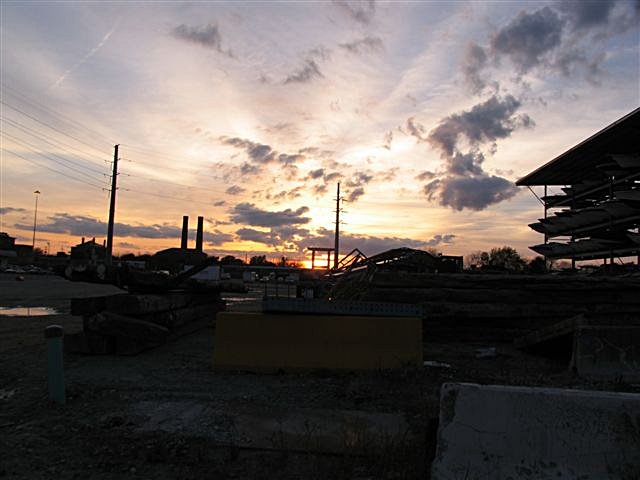

and sunset.

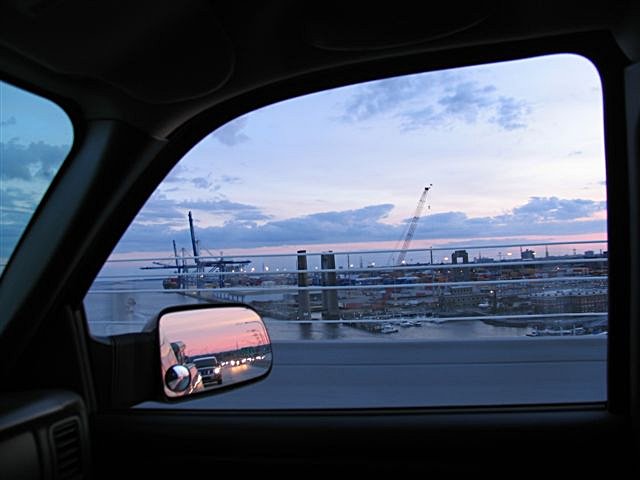

and Sparky going home after a very long day
