April 12 2006: Dropping P-11 -> P-13

Sparky was out on the water early this morning. I'll have the photos up shortly.

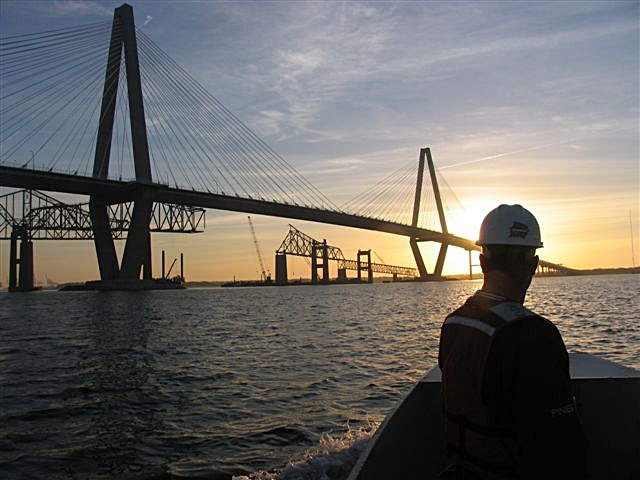

Off to work at 7:20

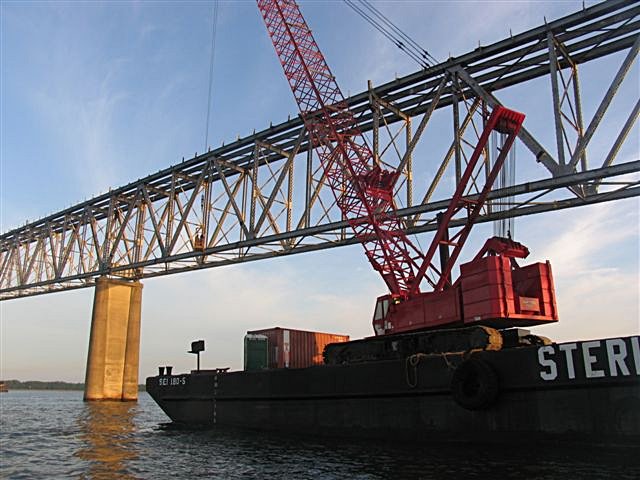

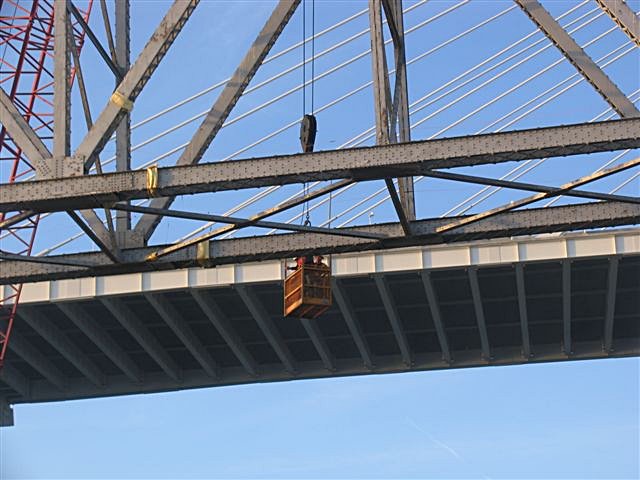

and the Chris-o-vator is already at work fetching and toting stuff around the Grace. Here the stuff is a couple of members of the Demolition Dynamics team. Note the charges in place as highlighted by the kevlar wrappers.

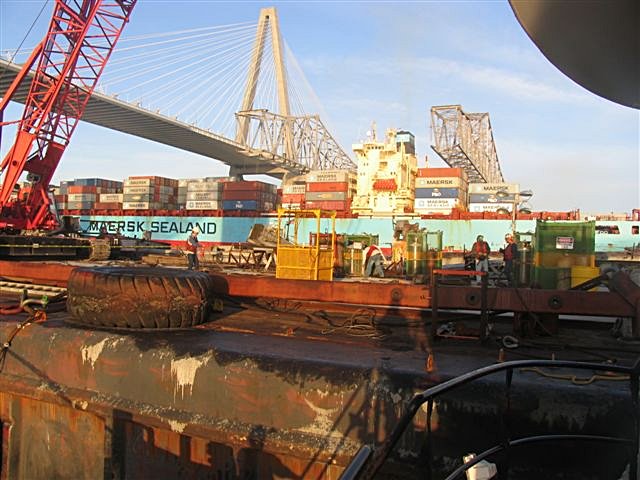

Sometimes in the shipping channel, things get a bit tight.

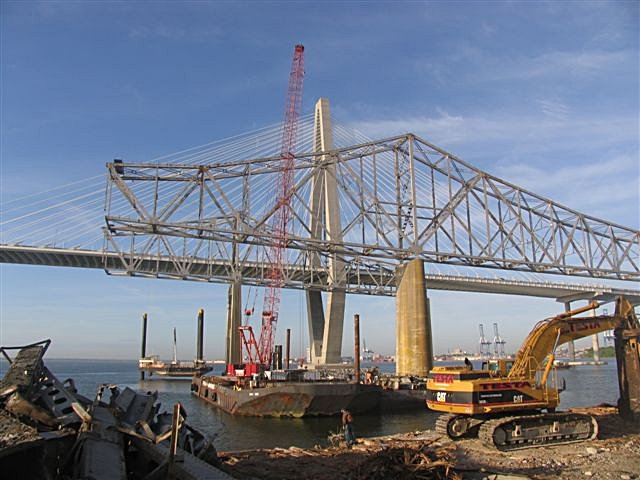

at the sametime - retrieval of Pearman sections and the Jackup barge ready to resume positioning Mickey's guys for drilling C-2

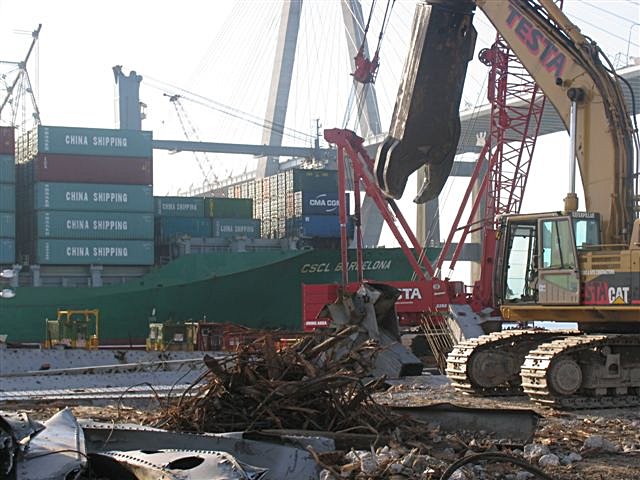

Its 8:10 and more close quarters

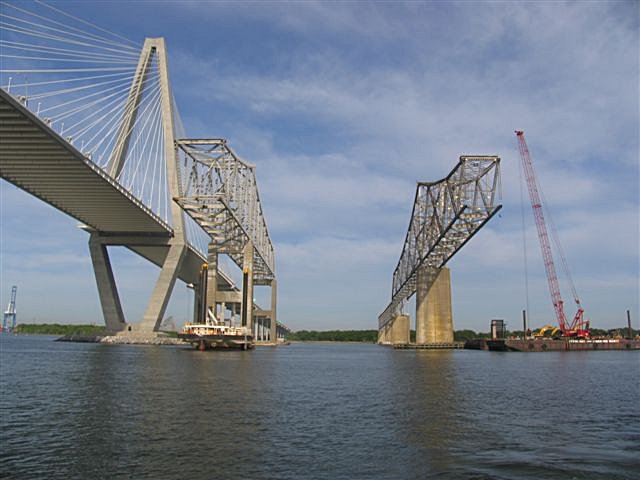

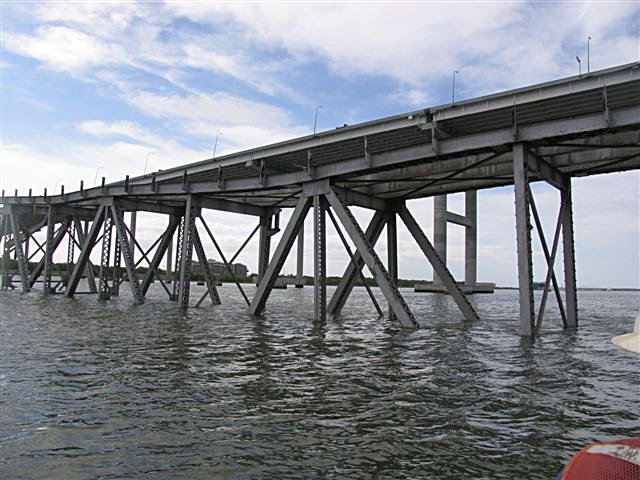

A nice view of the East Pearman and Grace Structures

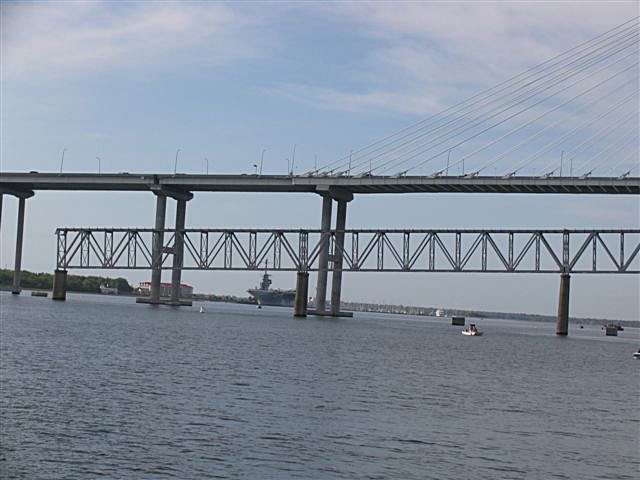

Today's target - the truss spanning P-11 to P-13 with the Yorktown in the background

and our ace photographer, Sparky - set up on the barge

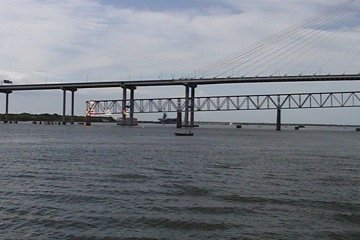

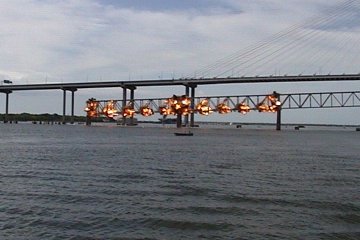

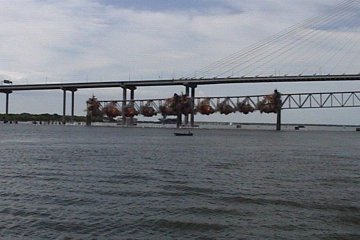

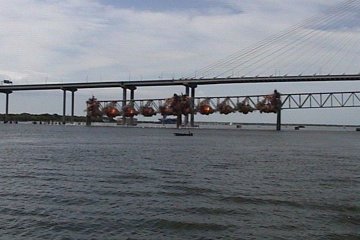

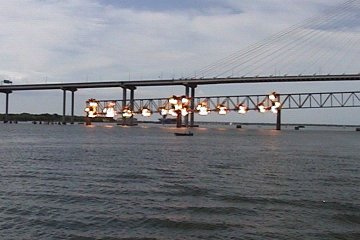

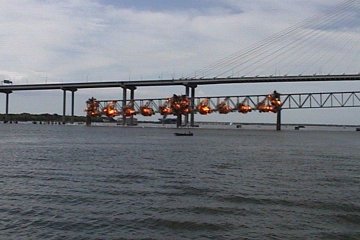

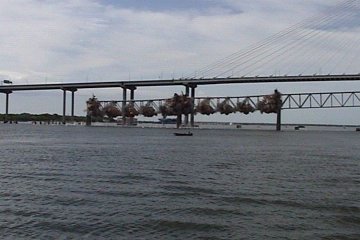

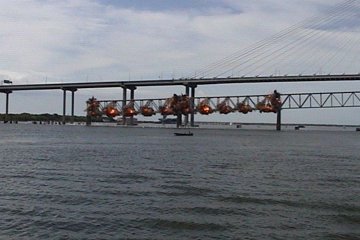

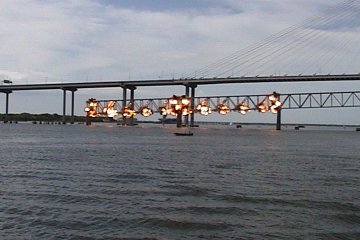

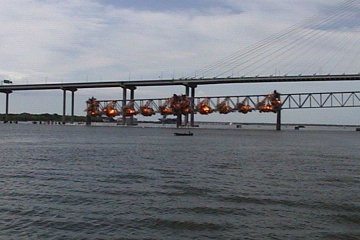

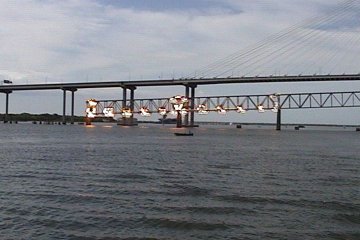

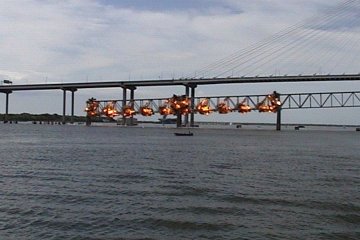

The ignition sequence (from individual video frames)

Time = 0.0 sec      0.033 sec
Note ignition starting from the left - Mt. Pleasant side)

Time = 0.067 sec      0.100 sec

Time = 0.133 sec      0.167 sec

Time = 0.200 sec      0.233 sec

Time = 0.267 sec      0.300 sec

Time = 0.333 sec      0.367 sec

Time = 0.400 sec      0.433 sec

Time = 0.467 sec      0.500 sec

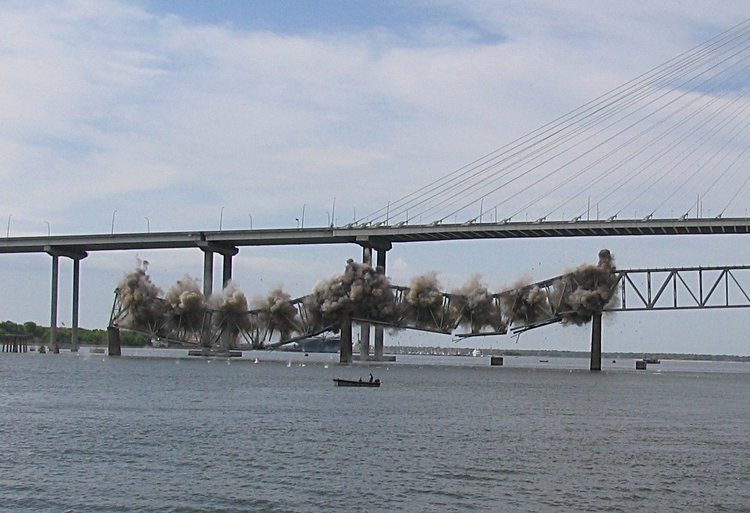

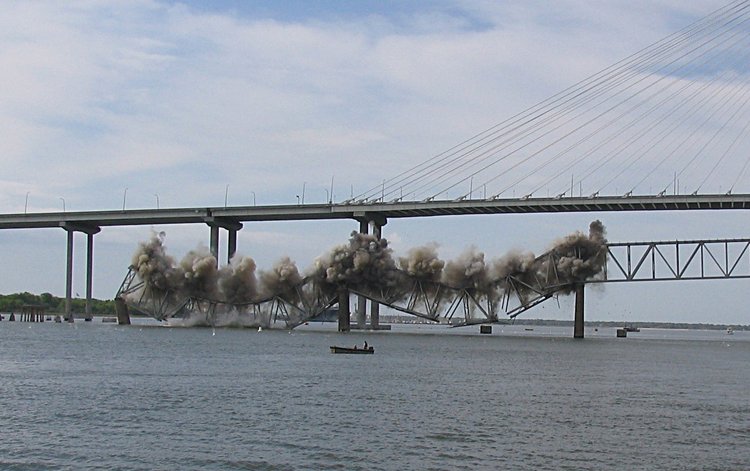

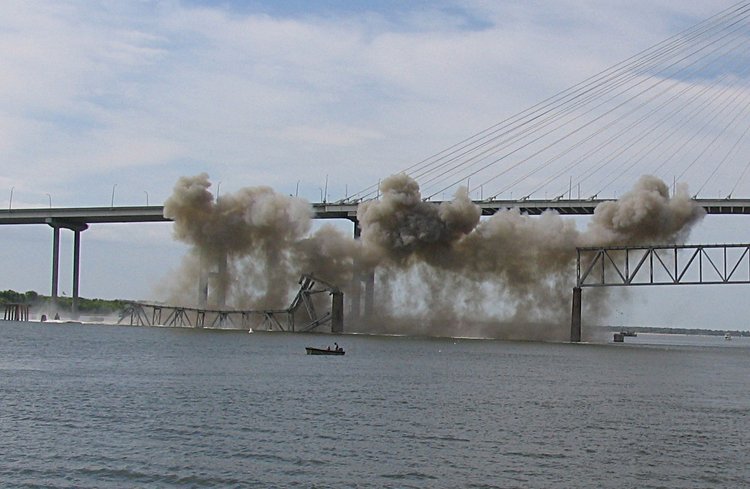

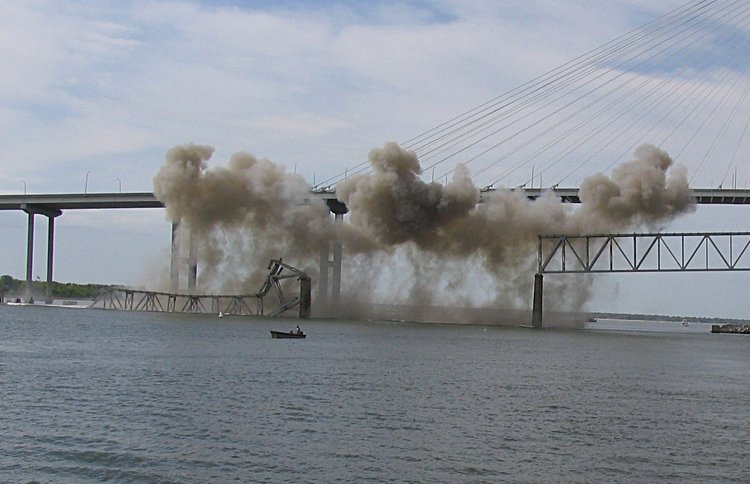

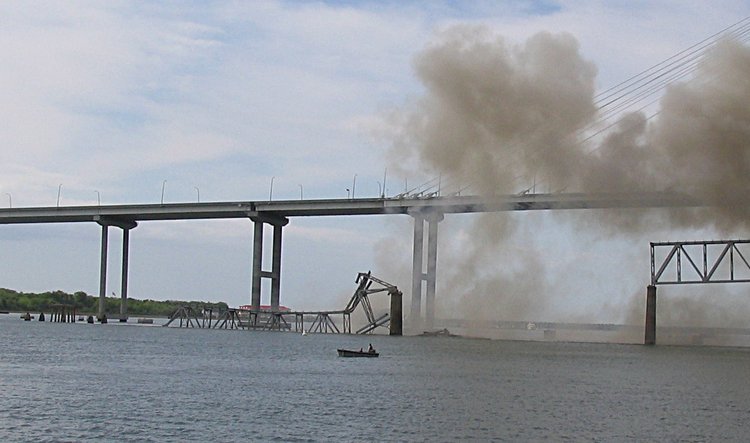

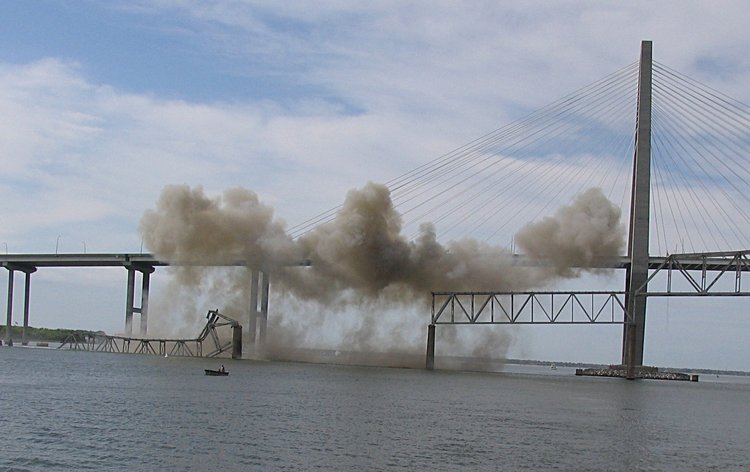

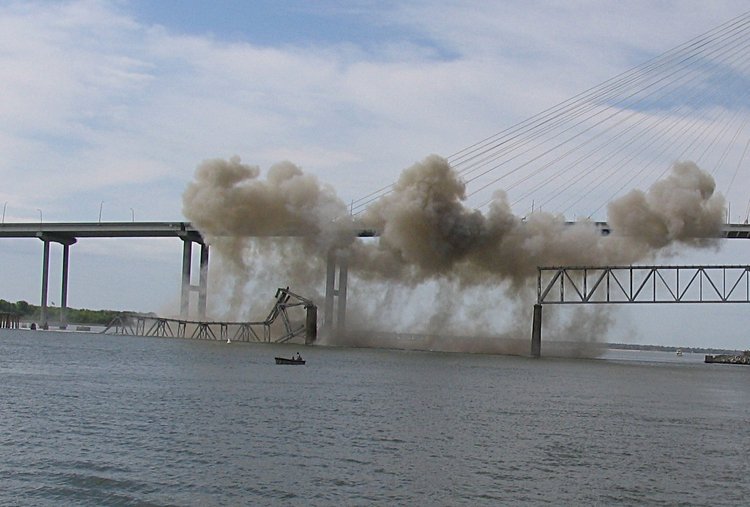

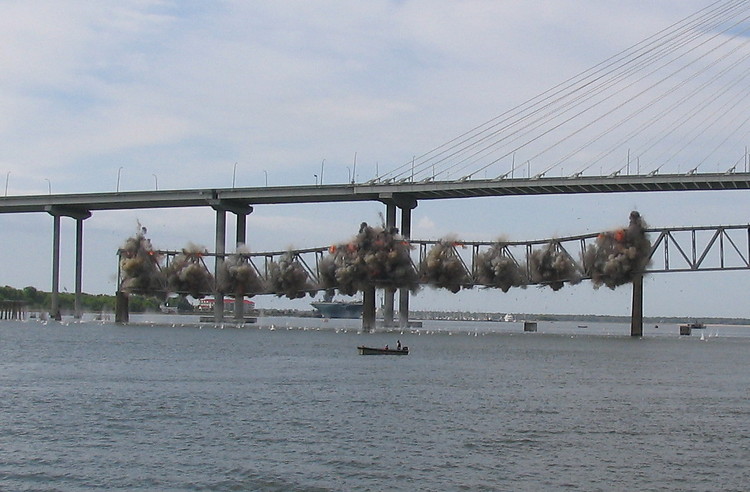

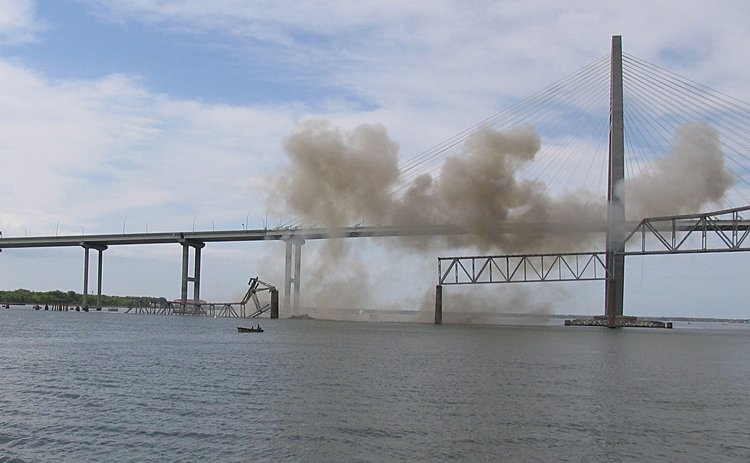

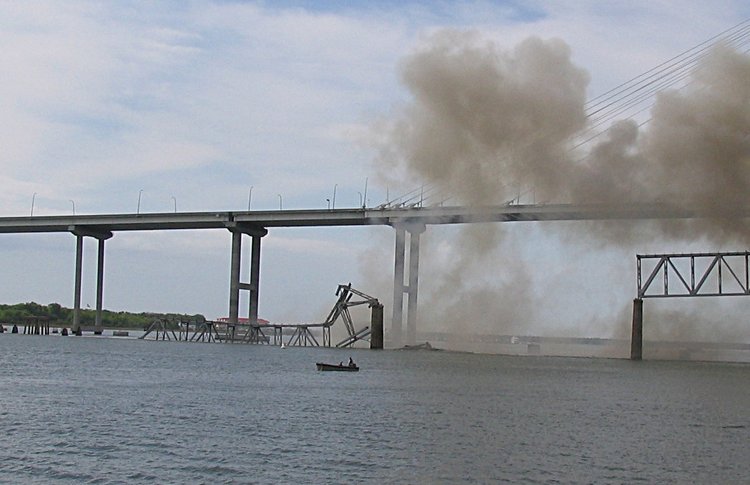

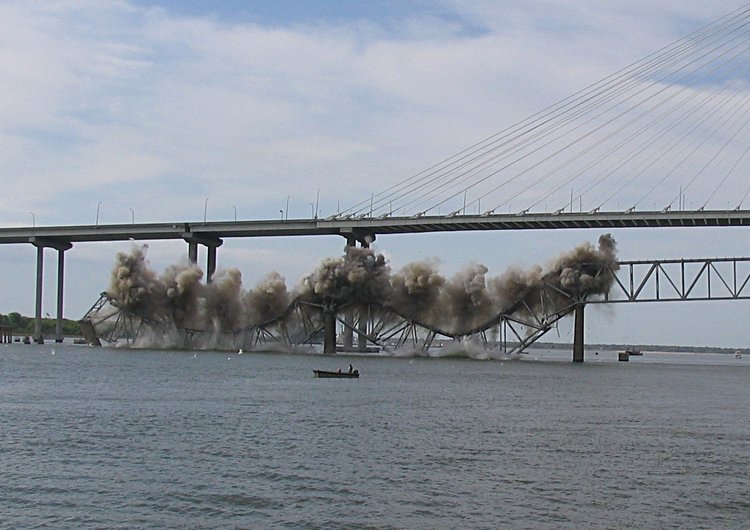

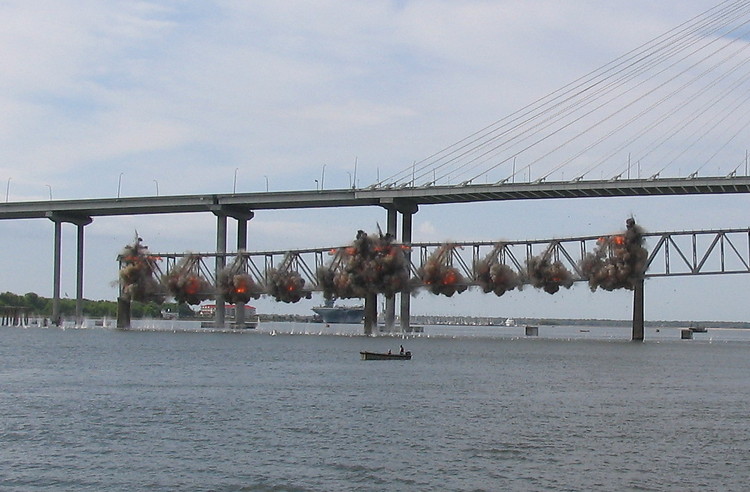

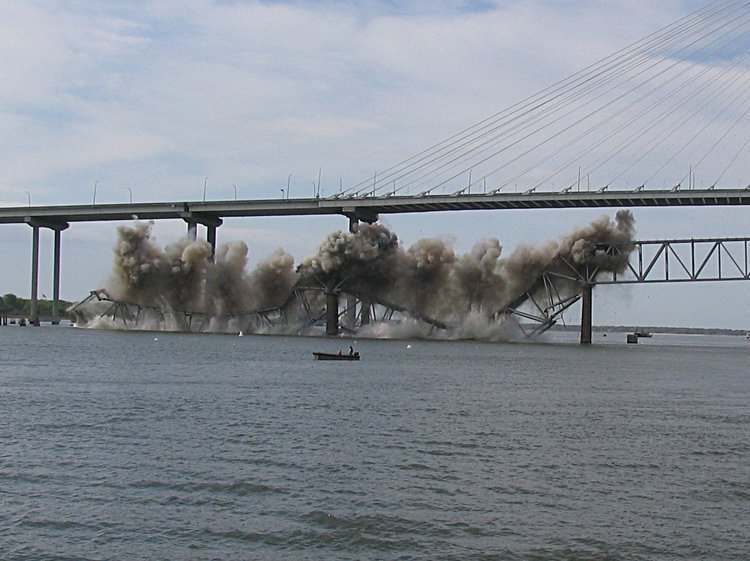

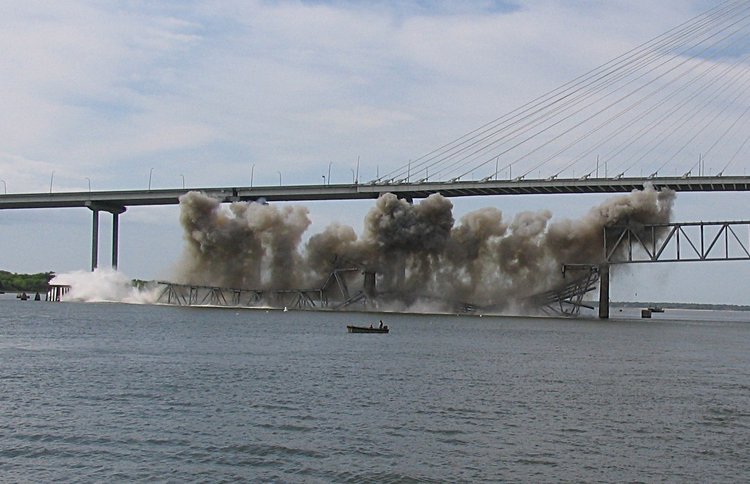

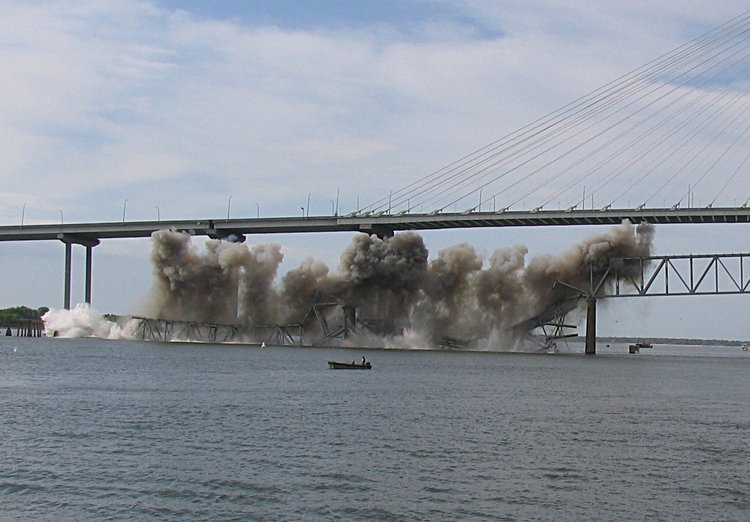

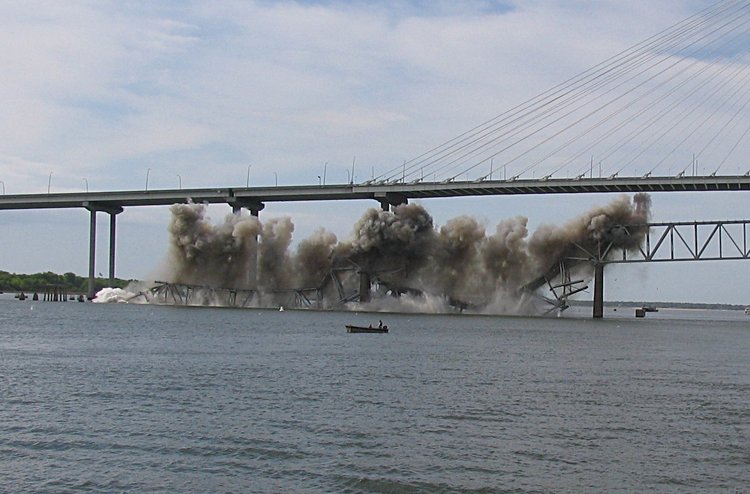

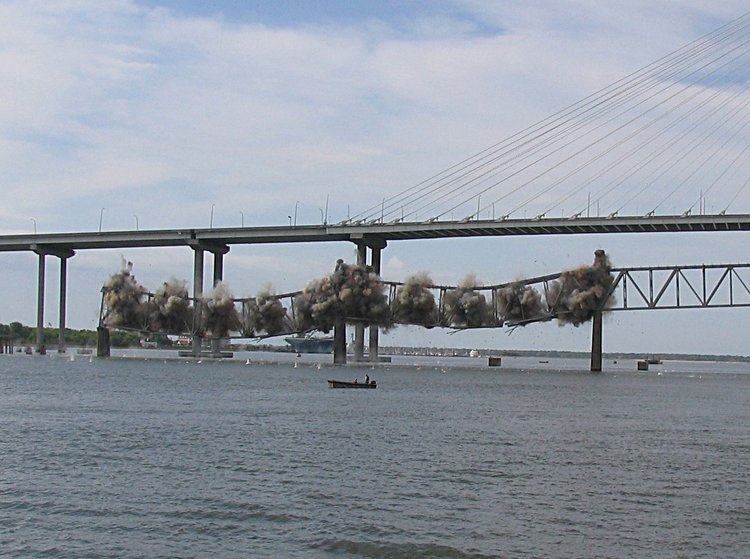

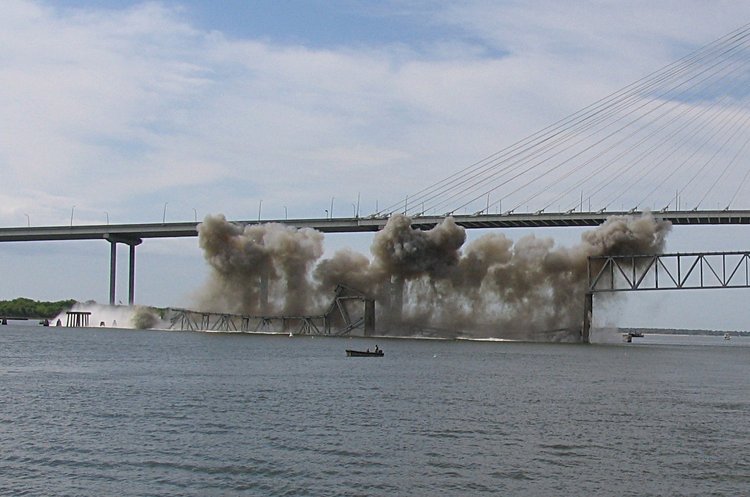

From high resolution images

09:59:37.0 according to the EXIF data in Sparky's photos

09:59:37.5

09:59:38.0

09:59:39.0

09:59:39.5

09:59:40.0

09:59:41.0

09:59:41.5

09:59:42.0

09:59:43.0

09:59:46.0

09:59:48.0

09:59:51.0

09:59:54.0

09:59:56.0

10:00:05.0

10:00:06.0

10:00:06.5

10:00:09.0

10:00:58.0

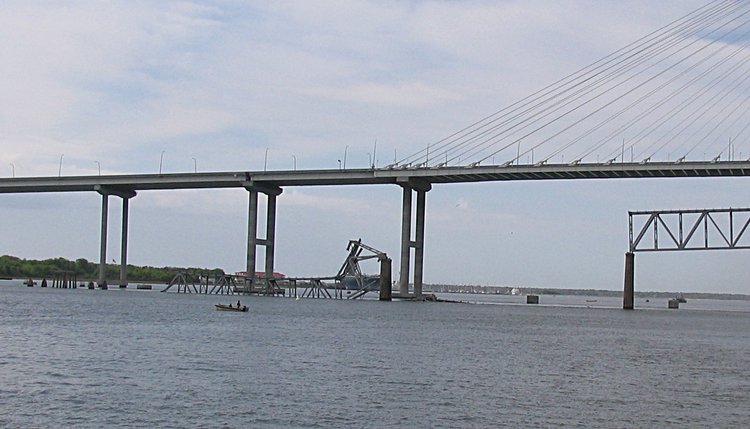

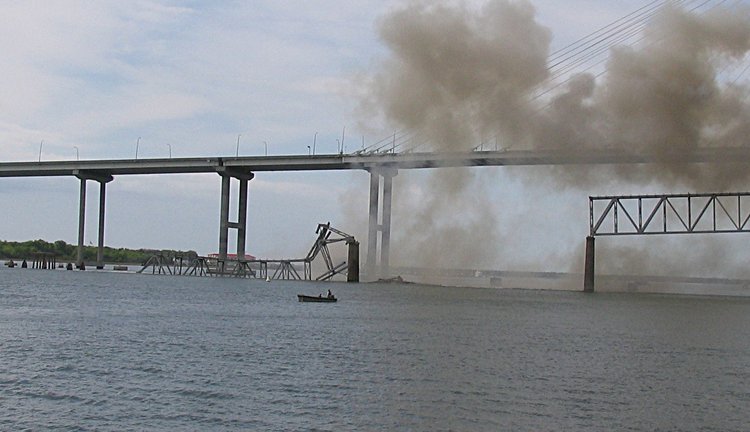

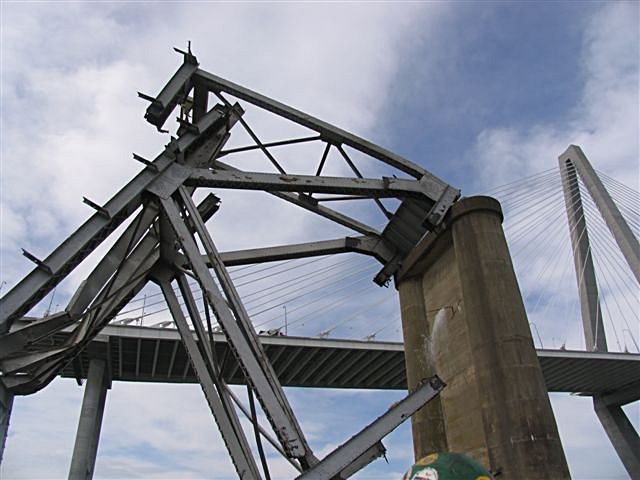

After the blast - a view the the results - sort of a tangle around P-12

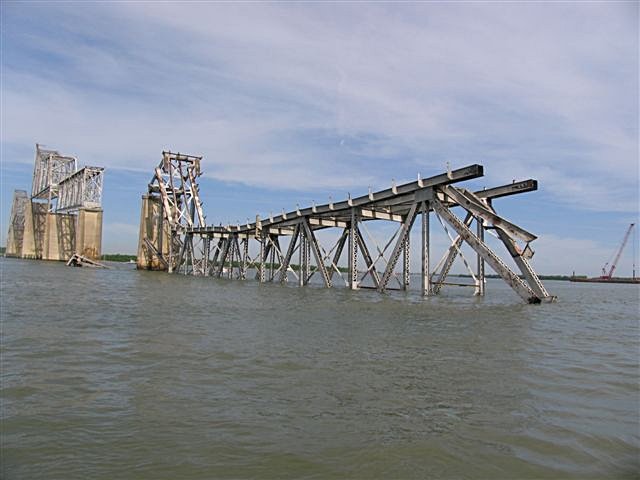

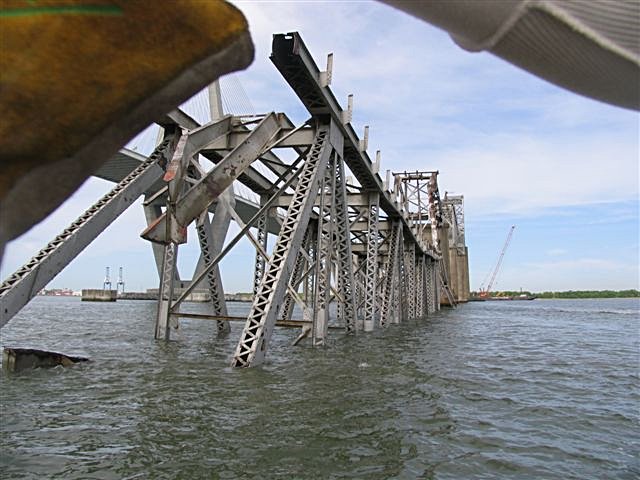

The half submerged Grace truss between P-11 and P-12

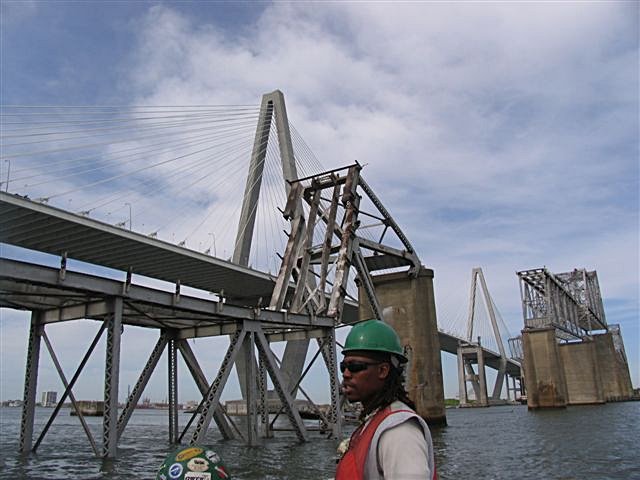

Stan - just taking it all in

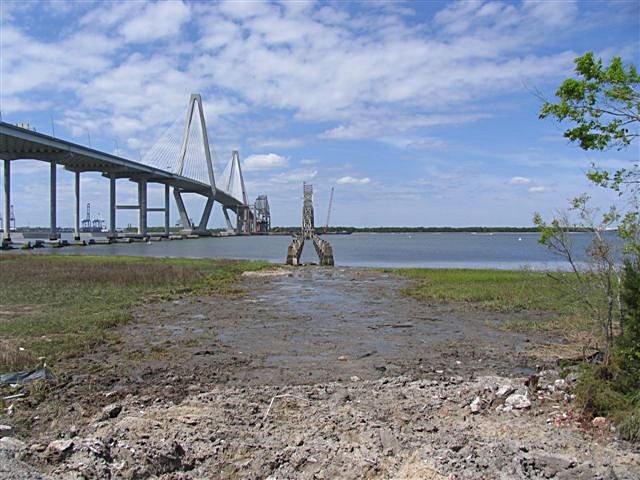

Looking from where P-11 used to be

Another view of the section that used to span P-11 to P-12

I don't know how this happened - but here is Nugget, iron worker, like Lewis - aiming a crew boat. And Sonny with a big grin!

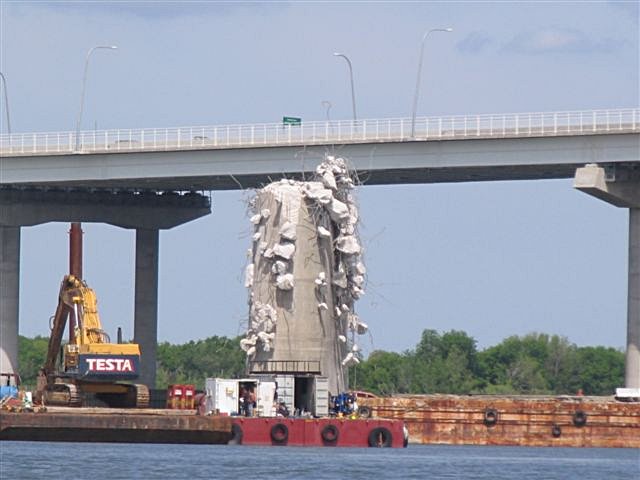

And nothing is complete without a view of P-3 - ready for continued unbuiding by Michael. (Happy Easter Tina, Stephanie, Samantha and Joshua - enjoy your family weekend!)

From the Mt Pleasant side - Nice view
