August 14, 2005: Lifting girders from the I-26 overpass

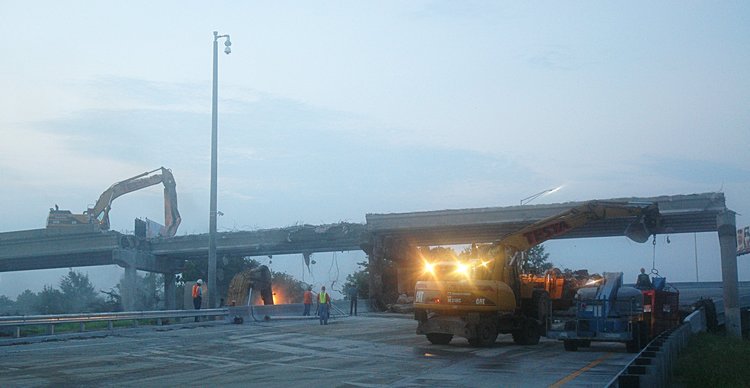

The Testa-Cashman guys were at it all night - and when I arrived about 6am the removal of the floor girders on the piers east of the I26 overpass was almost complete. Here is the story of overpass girder removal: lifting compared with the Friday night removal by gentle lowering of the girders.

The procedure consisted of attaching cables to each girder, cutting the bolts that coupled the girder to the caps, lifting the girder, rotating it and then lowering it. I have tried to capture most of the steps in the procedure. I shall fill in the details a bit later

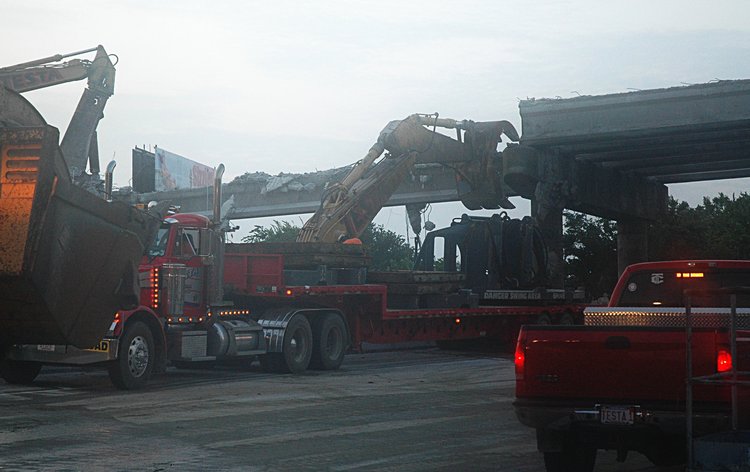

Continuation of removing the girders on the east side of the overpass

After all the east girder were removed - here is the I-26 overpass.

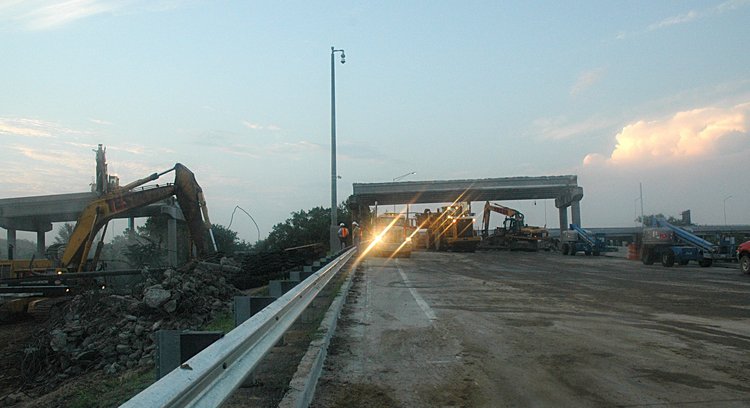

First - clean up the debris from removing the roadway between the overpass girders

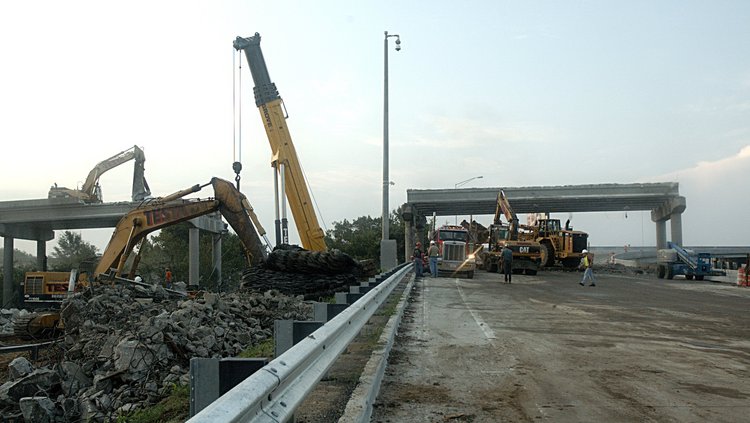

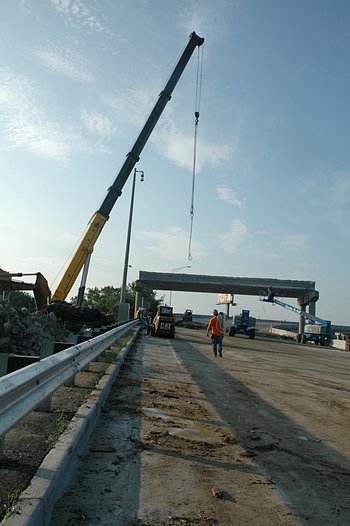

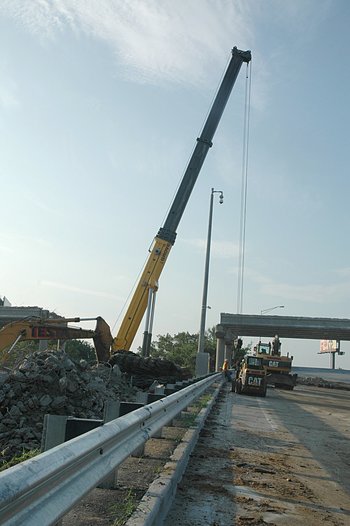

Erecting the crane that will be used to life the girders

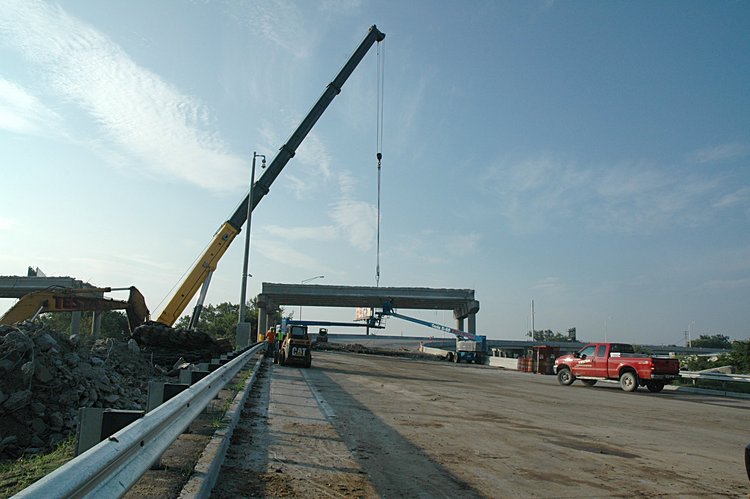

Moving the lifting cables into position between the edge girder and the one next to it

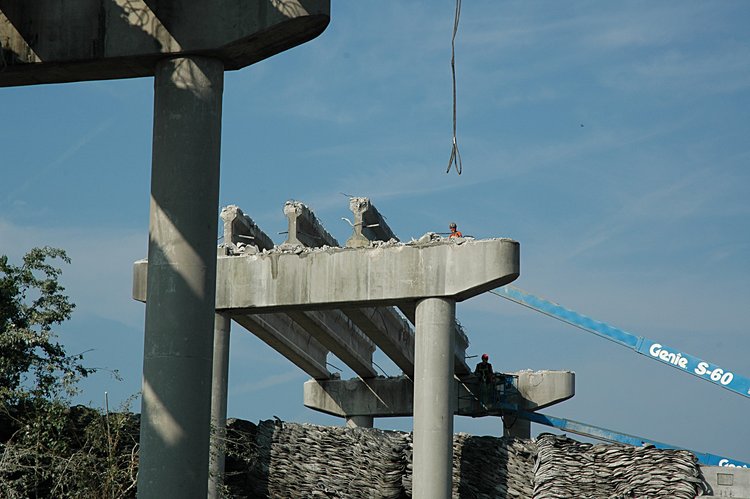

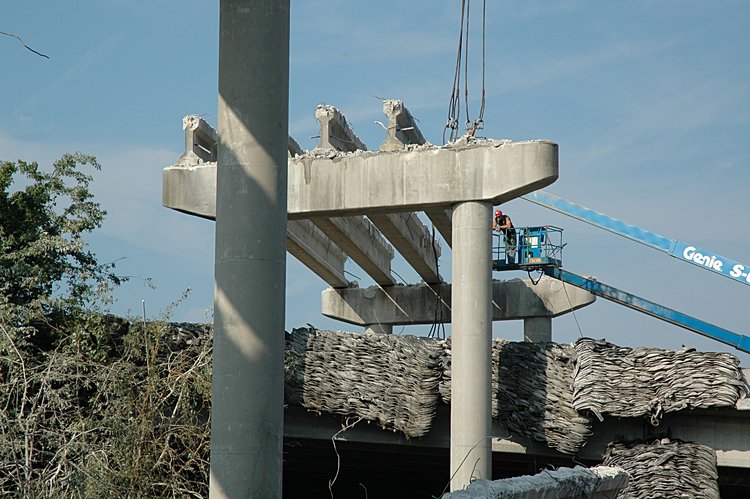

Lowering the cables between the girders

Looping the cables around the outside girder

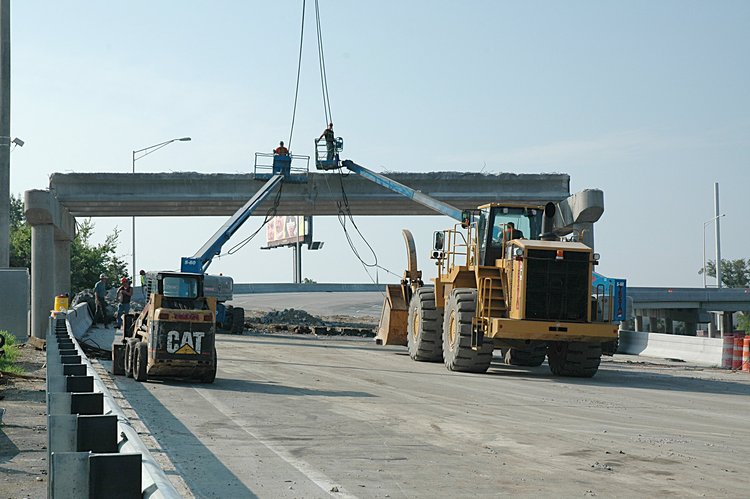

Moving the loops into position

Initial lifting of the girder

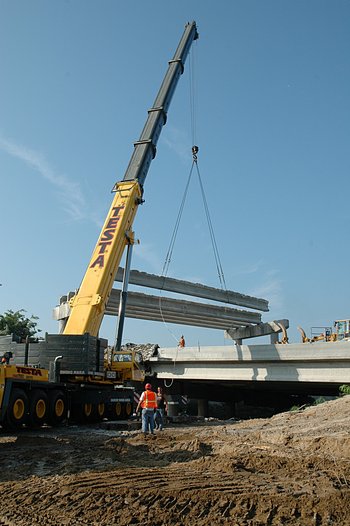

the lifting the entire girder

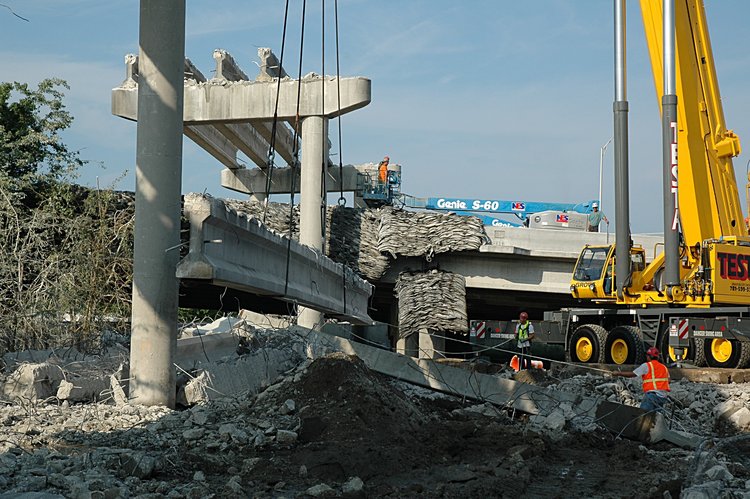

rotating the girder and lowering it to the ground

Decoupling the cable loops

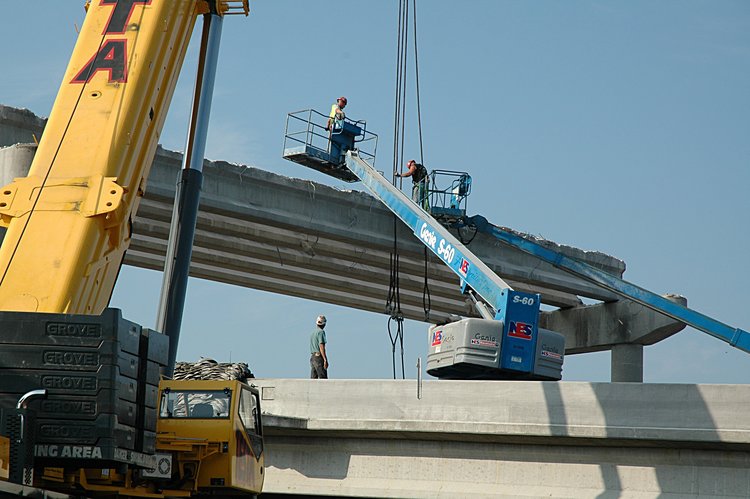

Rotating the lift cables back to the next girder

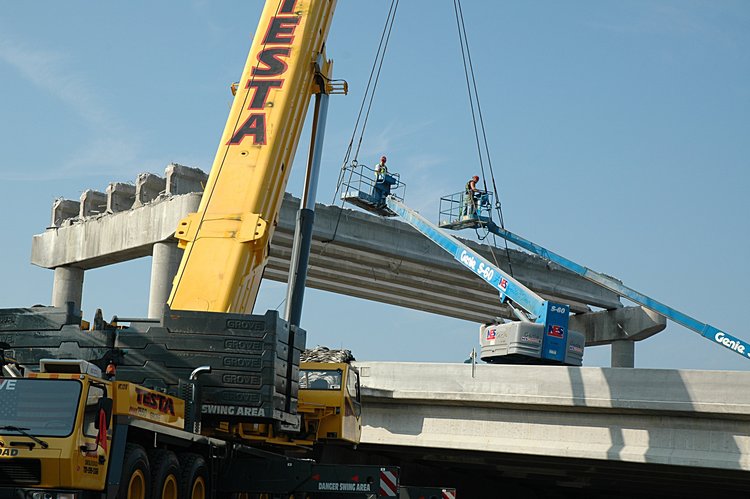

Positioning the left cables

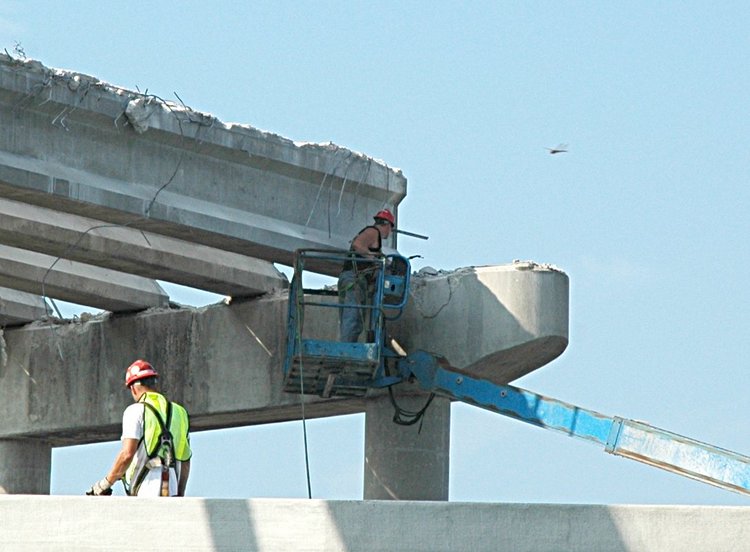

Cutting the attachment between the girder and the pier cap

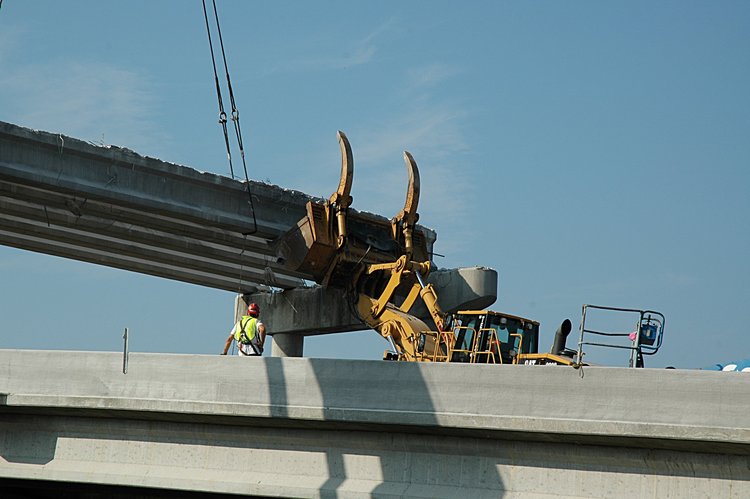

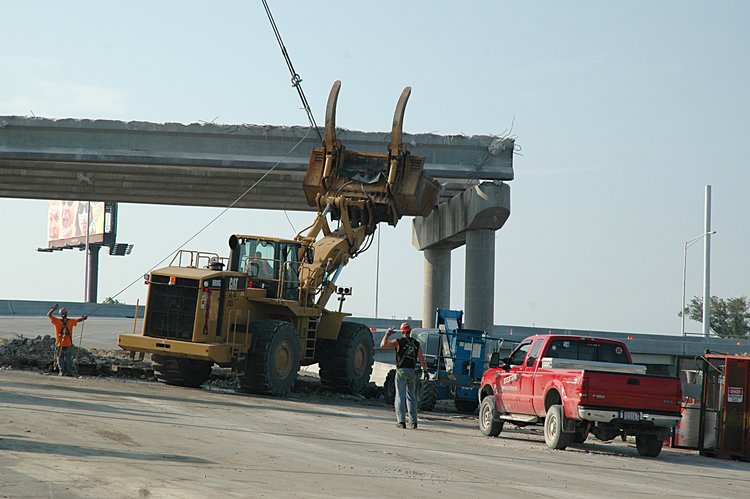

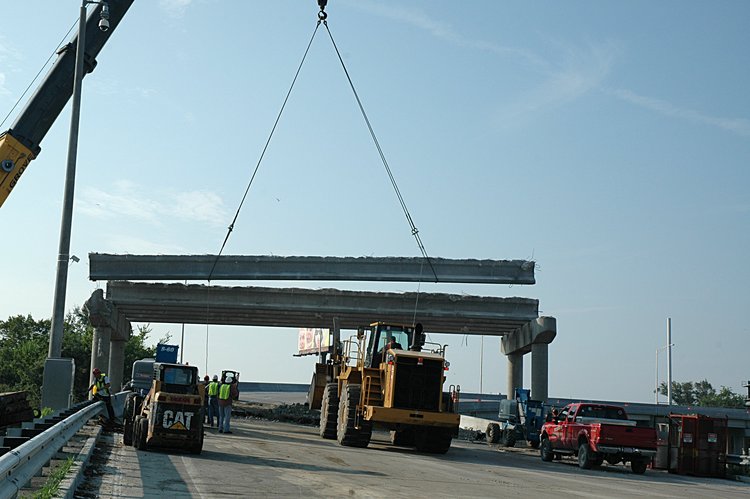

An initial lift from below

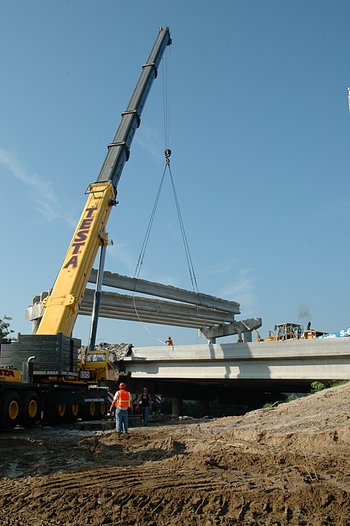

Then lift - slowly slowly

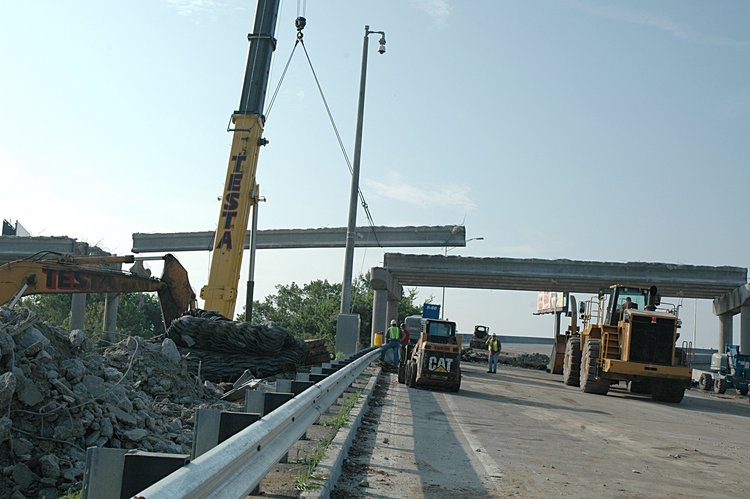

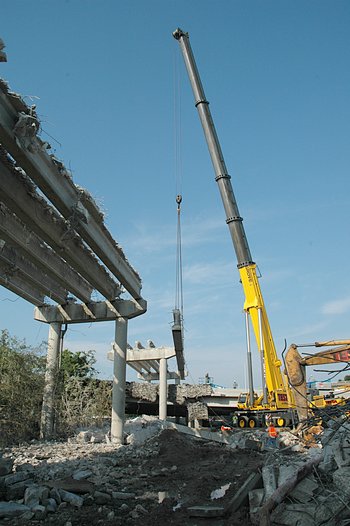

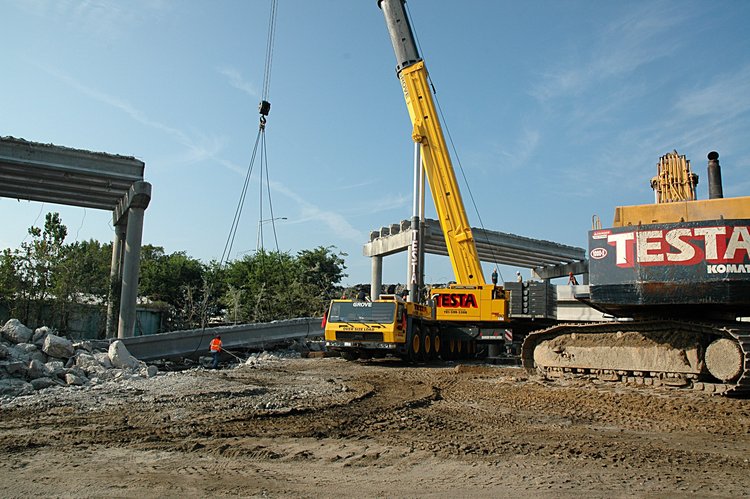

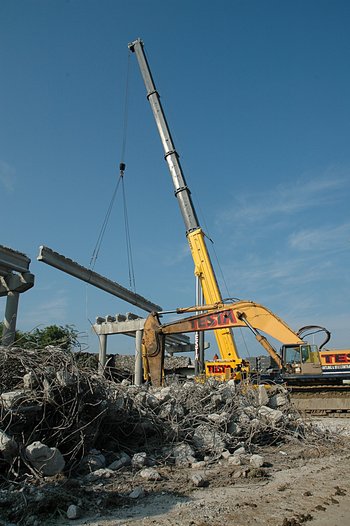

Rotate and lower

Note the protective blankets placed over the I-26 edge barriers

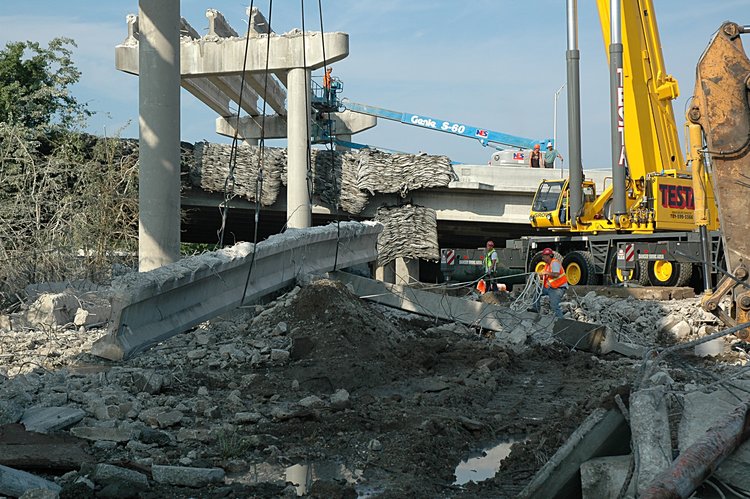

to the final resting place

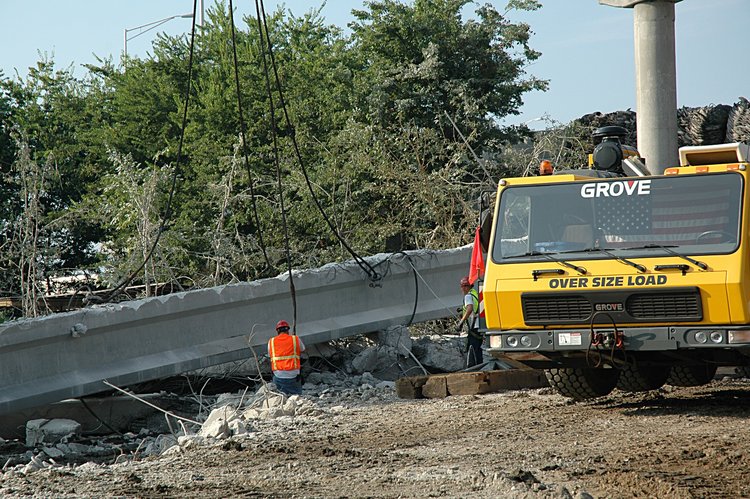

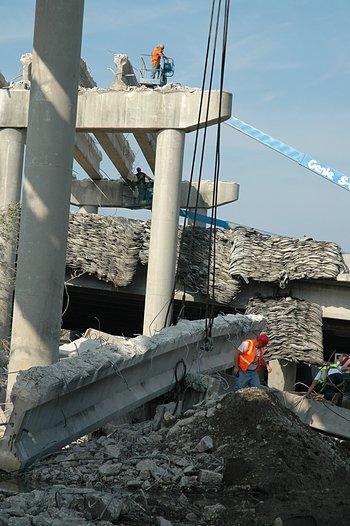

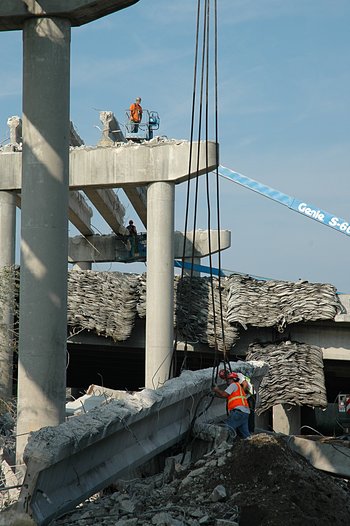

Decouple the cable loops

And so it start again with lowering the cables between the next pair of girders

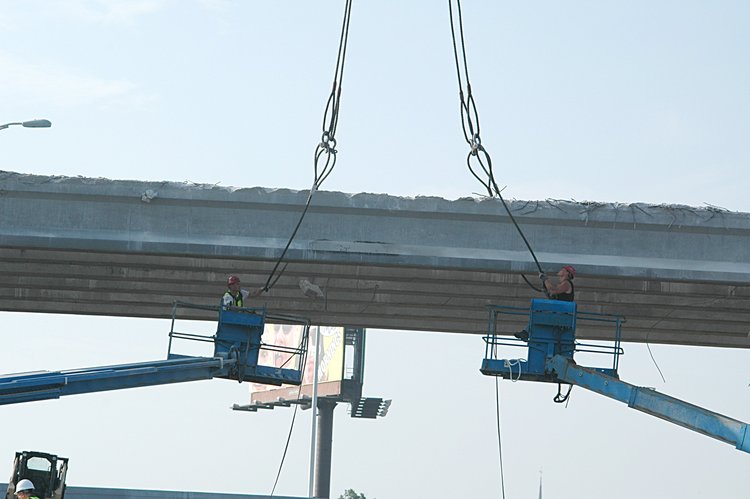

Making the loops

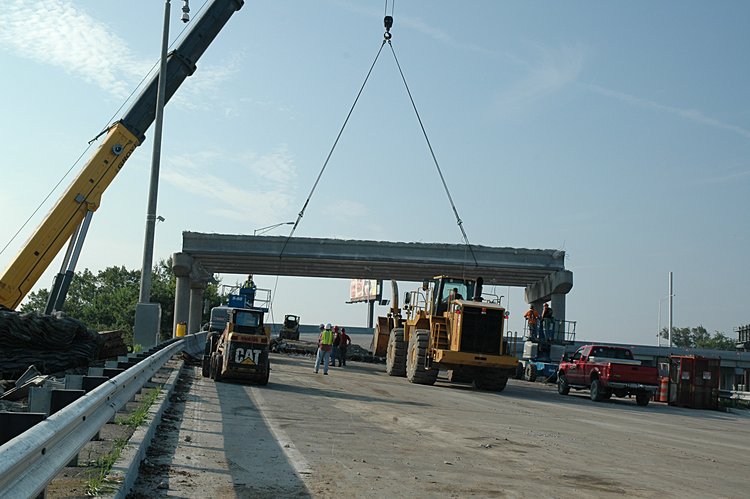

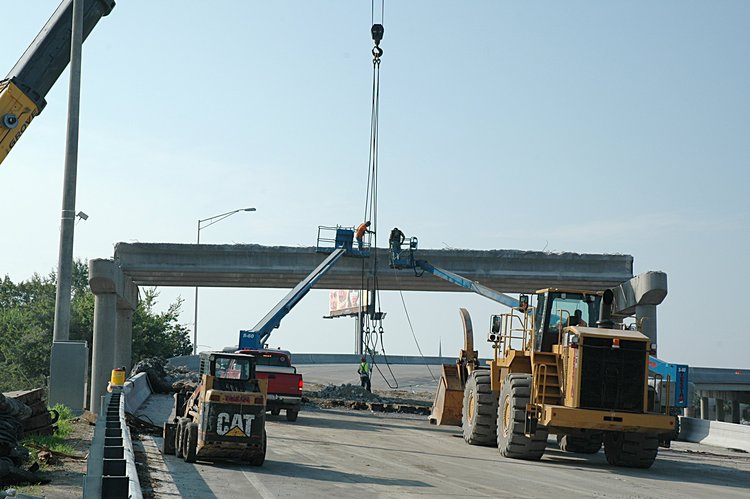

Raising the loops and moving them into the lift configuration

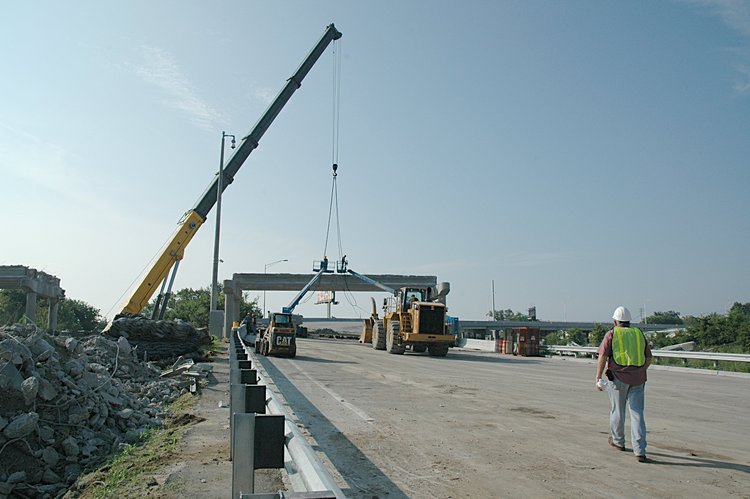

and so the process starts again
